Webbing stretch comparison
Interactive chart requires JavaScript. The data is in the table below.
Stretch-curve method — read off each webbing’s load–elongation curve, not the standardized ISA gauge test.
Show data table
| Webbing | 1 kN | 2 kN | 3 kN | 4 kN | 5 kN | 6 kN | 7 kN | 8 kN | 9 kN | 10 kN | 11 kN | 12 kN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

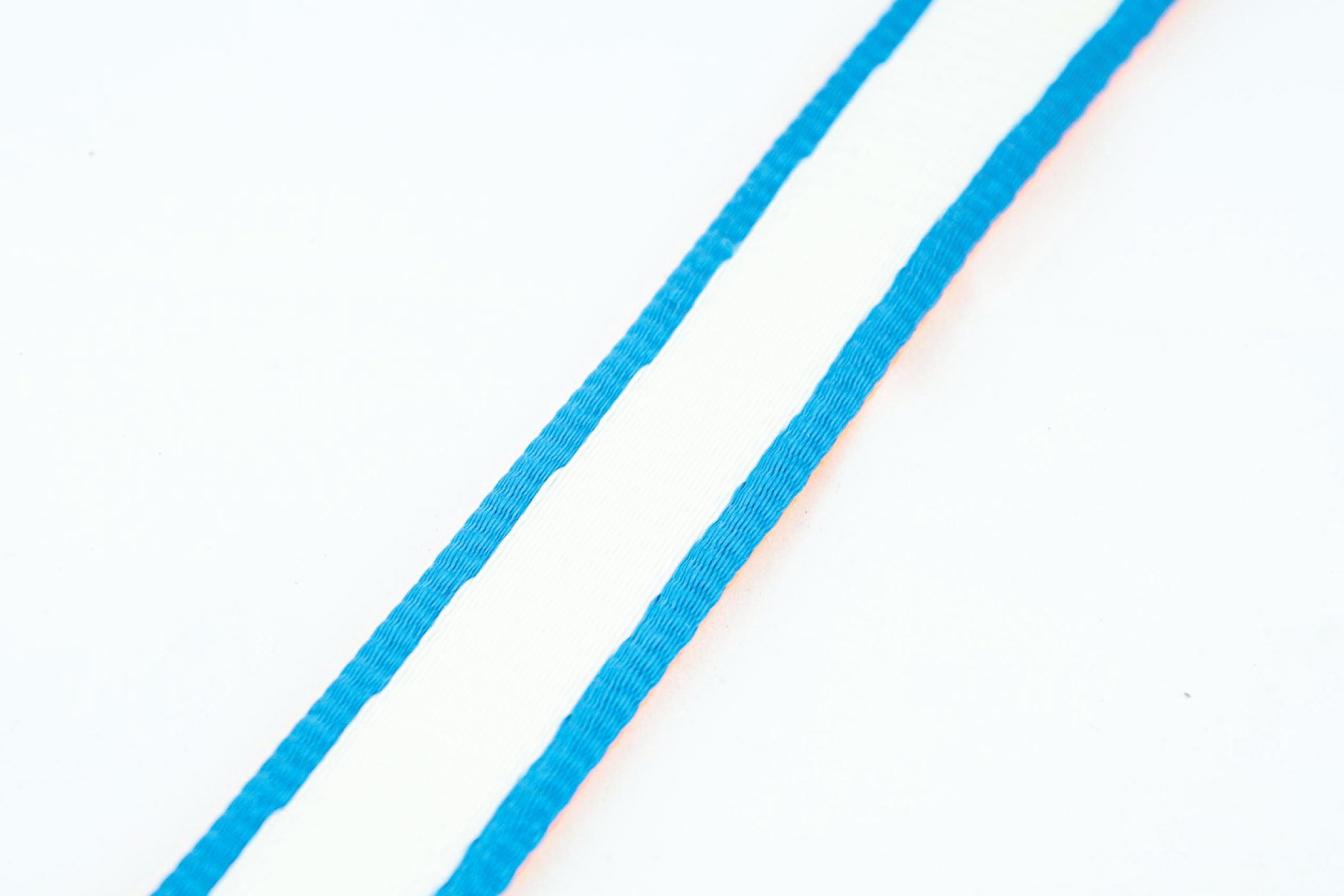

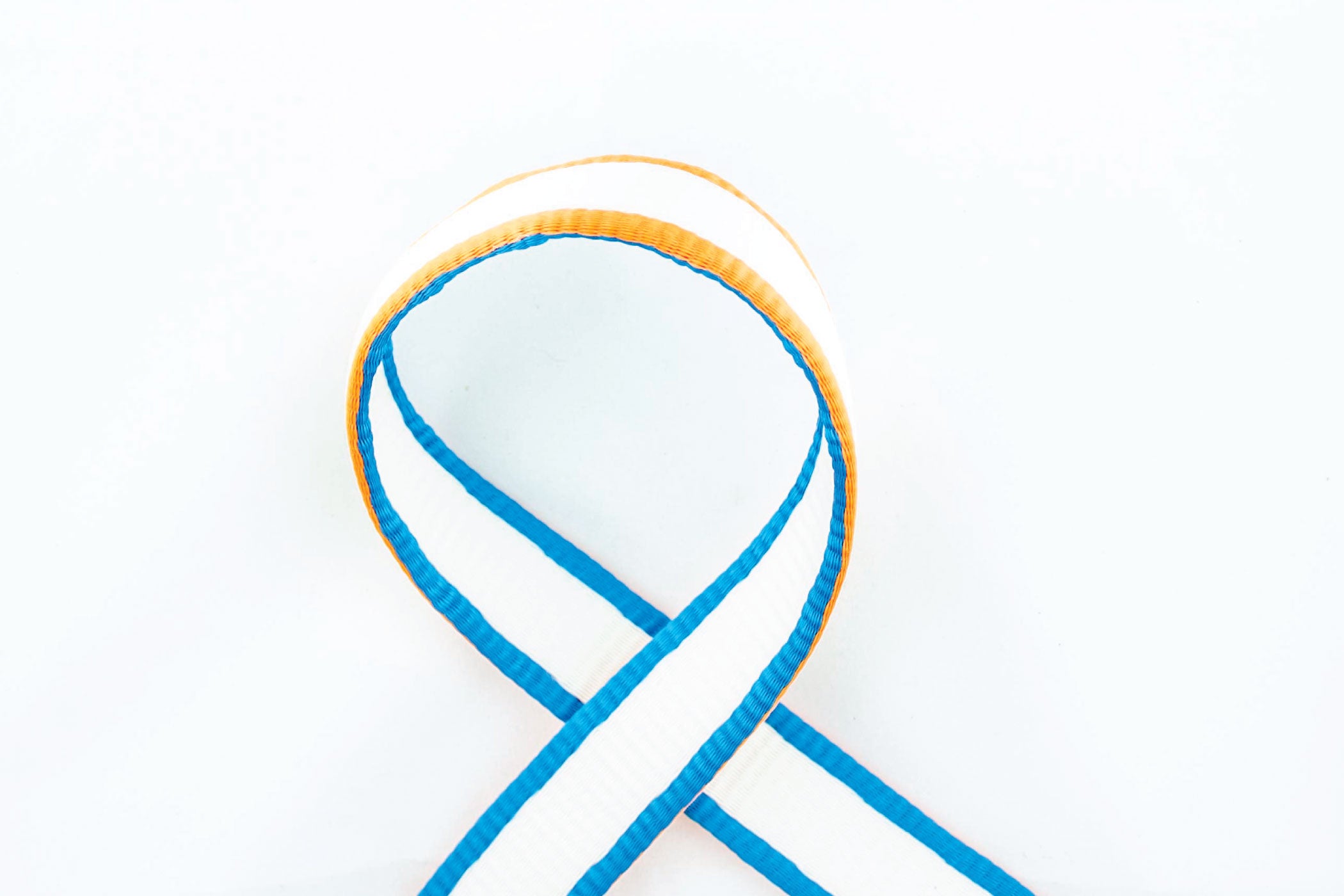

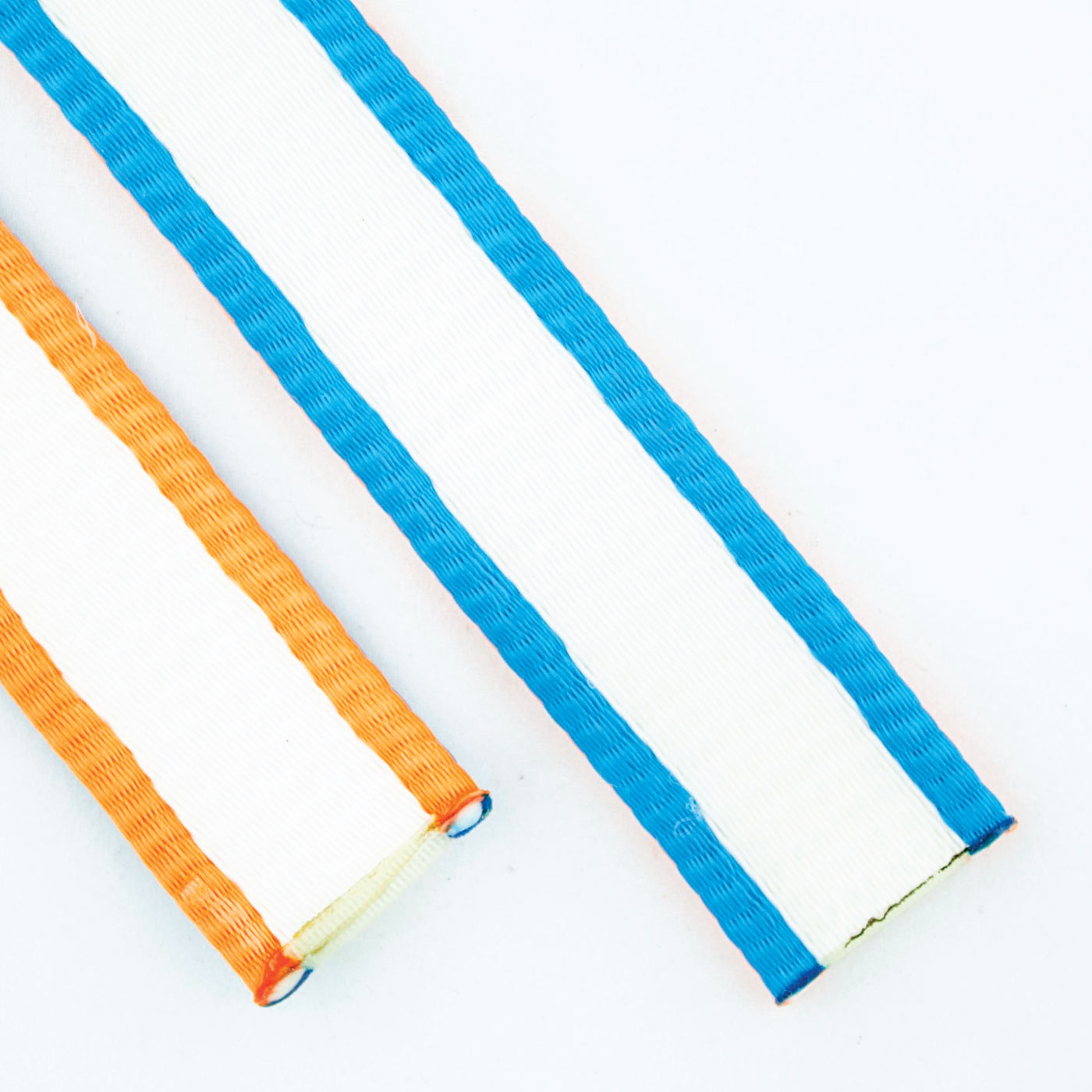

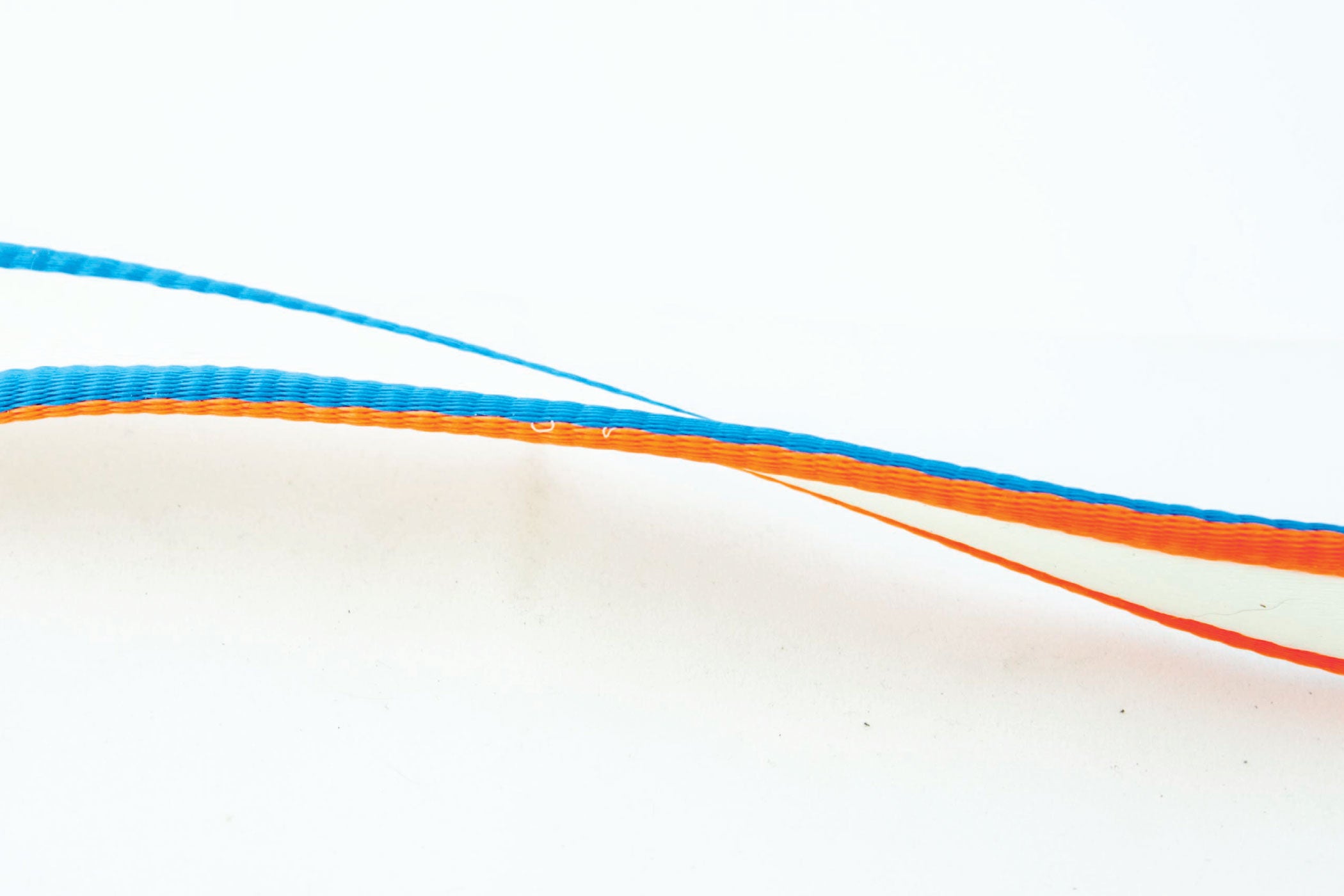

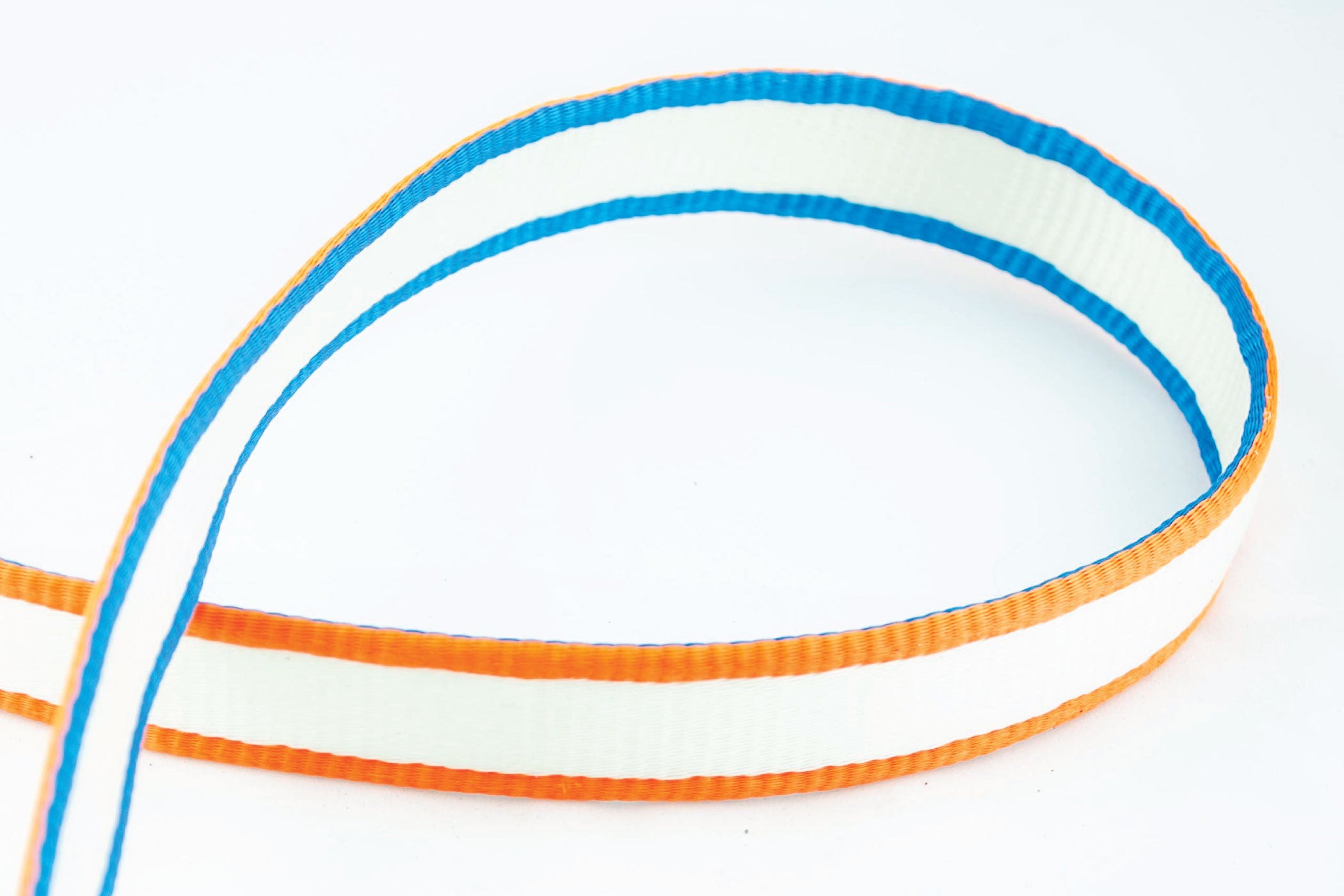

| Aero 2 discontinued | 0.19% | 0.65% | 1.67% | 3.07% | 4.73% | 6.50% | 8.30% | 10.02% | 11.60% | 12.99% | 14.16% | 15.09% |
| Axiom discontinued | 1.58% | 2.26% | 2.73% | 3.10% | 3.40% | 3.63% | 3.85% | 4.02% | 4.20% | 4.35% | 4.49% | 4.62% |
| Axiom MK2 | 0.00% | — | — | — | 1.25% | — | — | — | — | 2.08% | — | — |
| Blue | 1.08% | 1.72% | 2.26% | 2.88% | 3.61% | 4.55% | 5.73% | 6.99% | 8.06% | 8.98% | 9.77% | 10.50% |
| Feather PRO | 0.97% | 1.61% | 2.11% | 2.67% | 3.33% | 4.36% | 5.63% | 6.59% | 7.30% | 7.92% | 8.56% | 9.12% |
| Green | 2.95% | 4.26% | 5.77% | 7.70% | 9.26% | 10.50% | 11.61% | 12.61% | 13.43% | 14.22% | 14.89% | 15.41% |
| Green 20 | 2.15% | 3.38% | 4.69% | 6.48% | 7.88% | 9.06% | 10.10% | 11.03% | 11.86% | 12.52% | 13.15% | 13.70% |

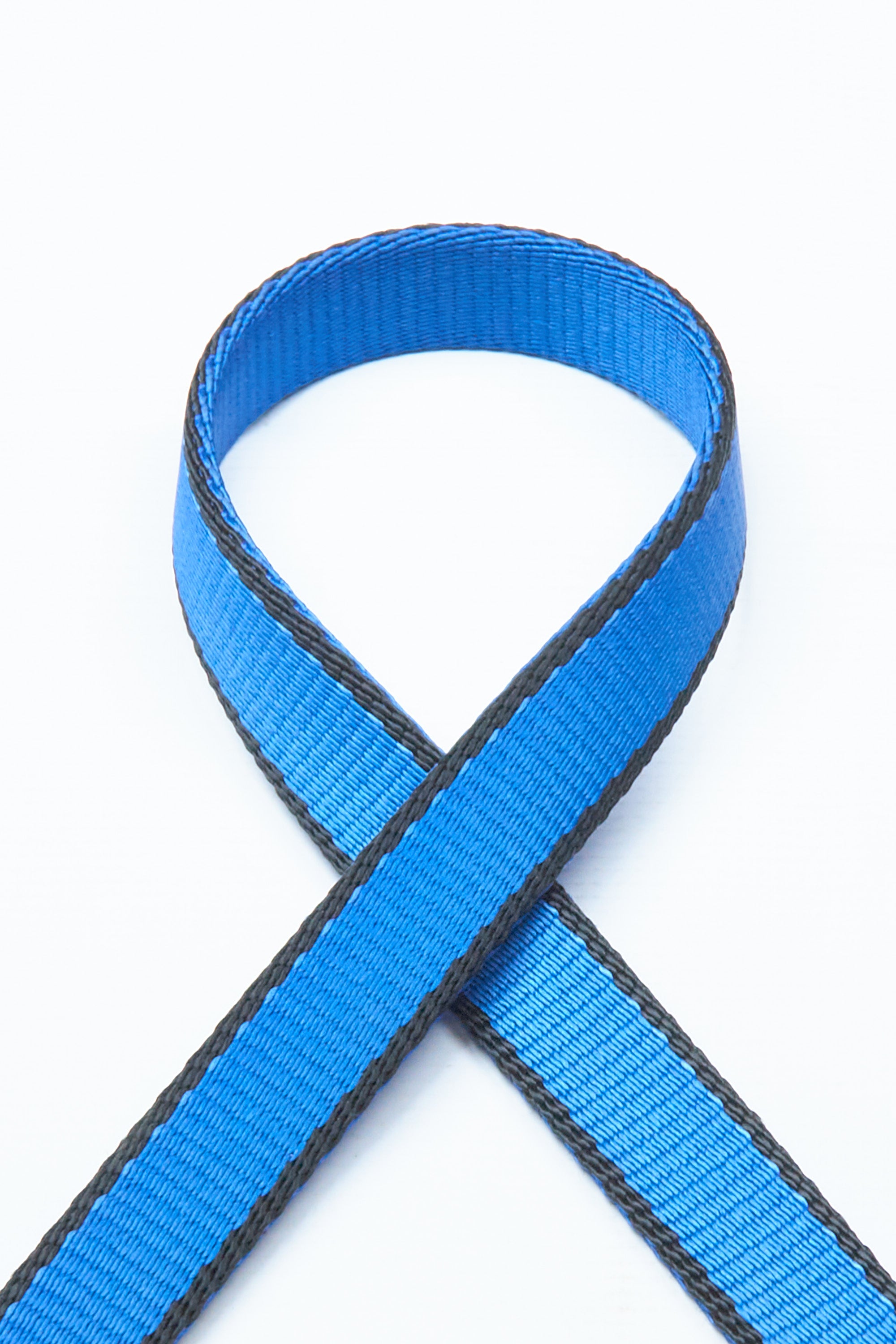

| Heavy discontinued | 1.08% | 2.24% | 3.37% | 5.24% | 7.18% | 8.87% | 10.19% | 10.87% | 11.99% | 13.12% | 13.68% | 14.24% |

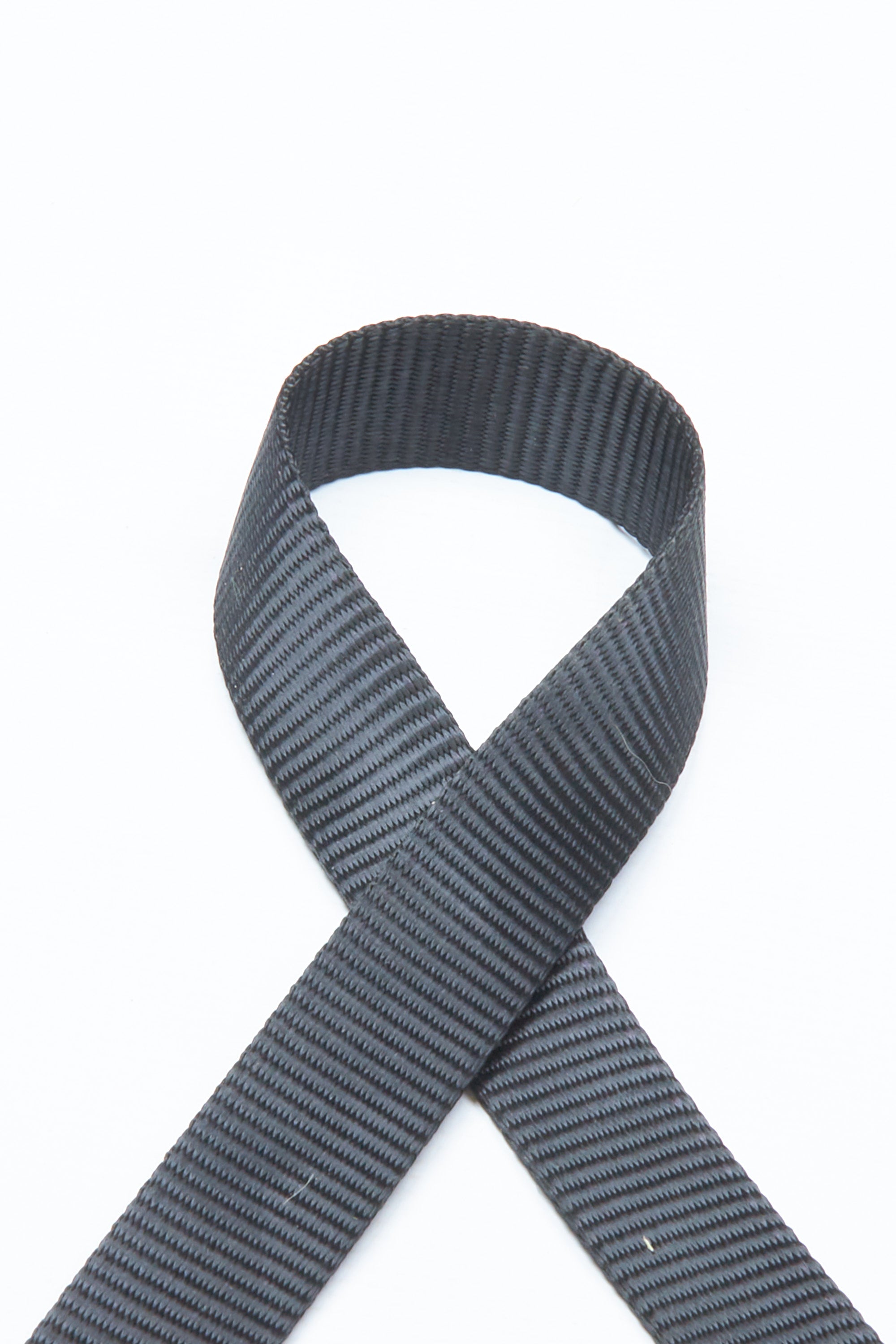

| JASP discontinued | 0.89% | 1.57% | 2.14% | 2.78% | 3.77% | 5.14% | 6.57% | 7.96% | 9.31% | 10.47% | 11.49% | 12.45% |
| Jelly PRO | 1.84% | 2.88% | 3.69% | 4.50% | 5.41% | 6.36% | 7.30% | 8.15% | 8.92% | 9.60% | 10.26% | 10.88% |

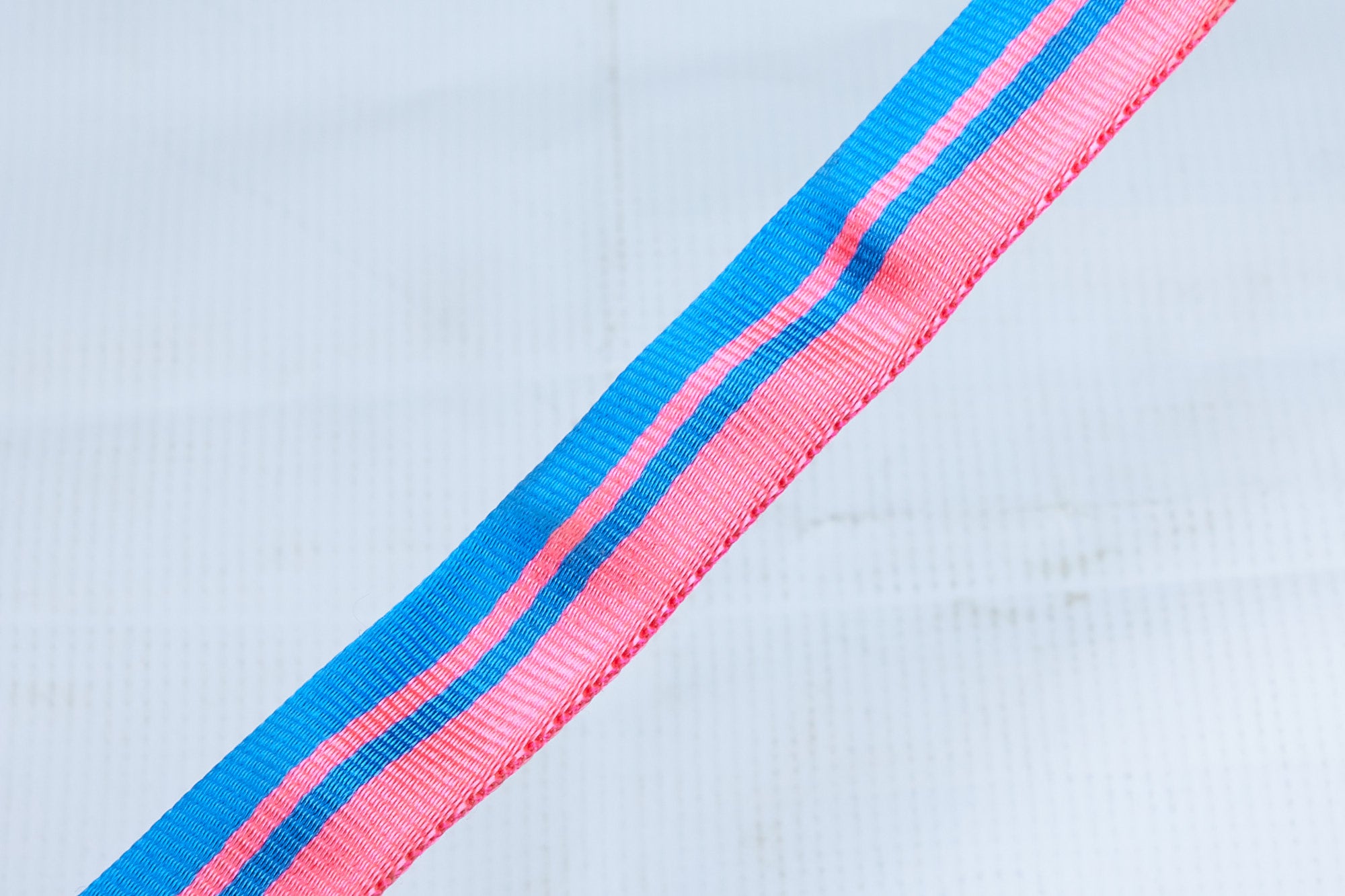

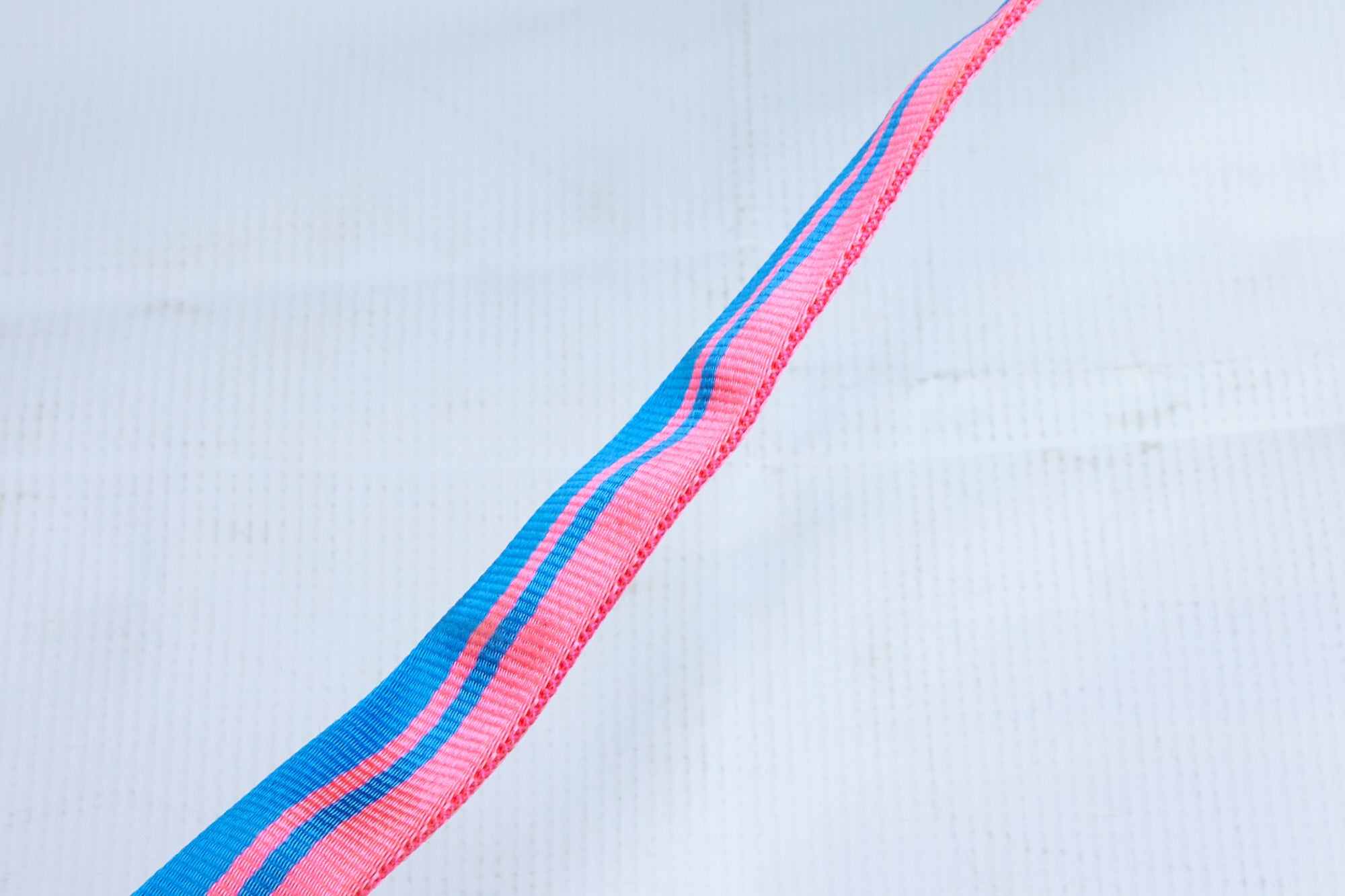

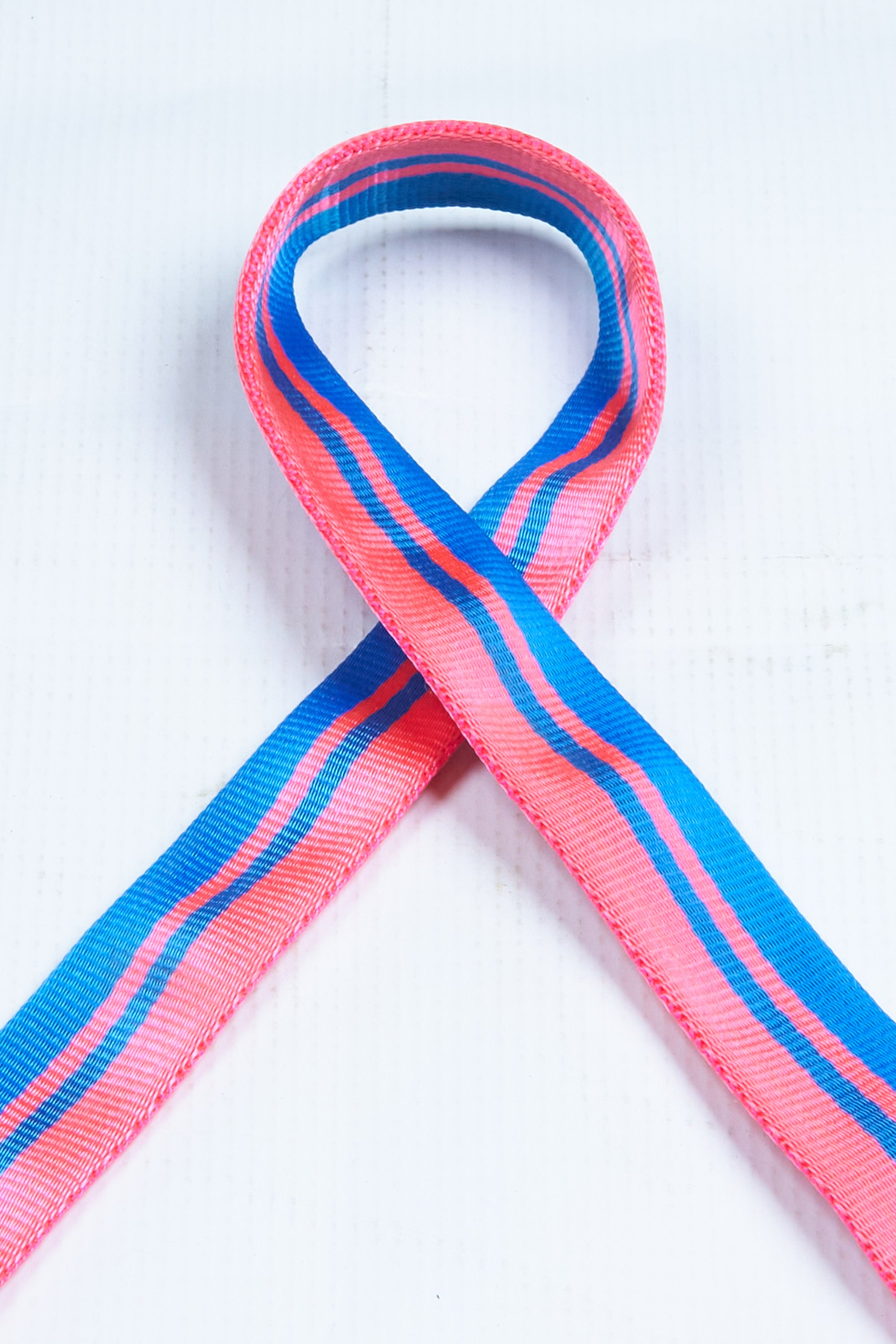

| Jelly Webbing discontinued | 0.48% | 1.37% | 2.21% | 2.96% | 3.84% | 4.50% | 5.10% | 5.72% | 6.38% | 7.01% | 7.61% | 8.19% |

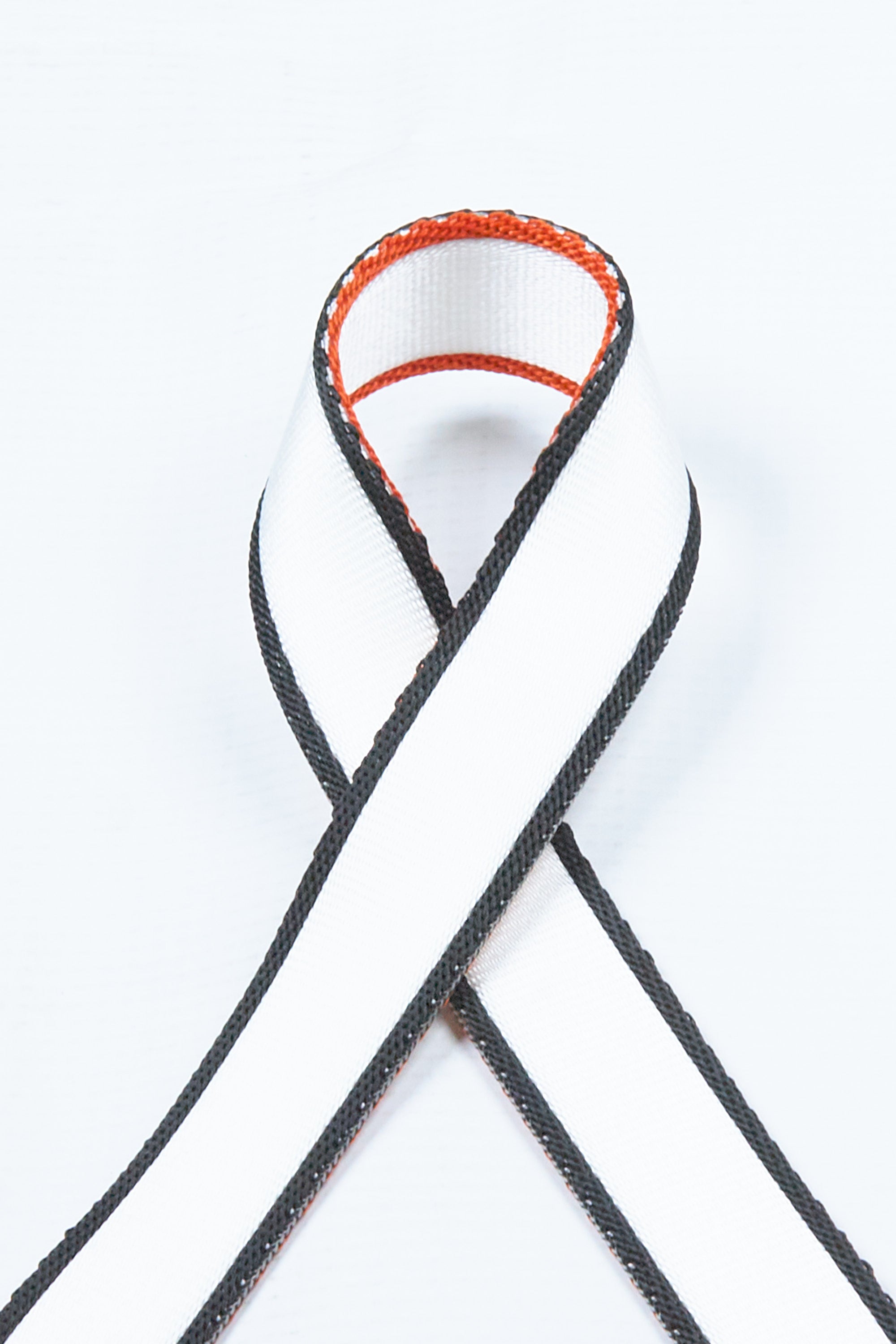

| Lift 2be discontinued | 3.31% | 5.85% | 8.53% | 9.59% | 10.98% | 12.88% | 14.42% | 15.39% | 16.22% | 16.90% | 17.69% | 18.12% |
| Mantra MK4 | 0.26% | 0.56% | 0.92% | 1.33% | 1.78% | 2.26% | 2.75% | 3.25% | 3.73% | 4.21% | 4.67% | 5.11% |
| Paradigm | 2.45% | 4.96% | 8.49% | 11.24% | 13.61% | 15.71% | 17.51% | 19.02% | 20.35% | 21.50% | 22.62% | 23.59% |
| Paradigm MK2 | 0.00% | — | — | — | 11.50% | — | — | — | — | 17.50% | — | — |
| Paradigm Signature | 2.11% | 4.25% | 7.76% | 10.36% | 12.62% | 14.59% | 16.28% | 17.74% | 18.99% | 20.14% | 21.22% | 22.13% |
| Pharaoh | 1.24% | 1.97% | 2.58% | 3.24% | 4.18% | 6.02% | 8.13% | 9.71% | 10.96% | 11.96% | 12.94% | 13.87% |

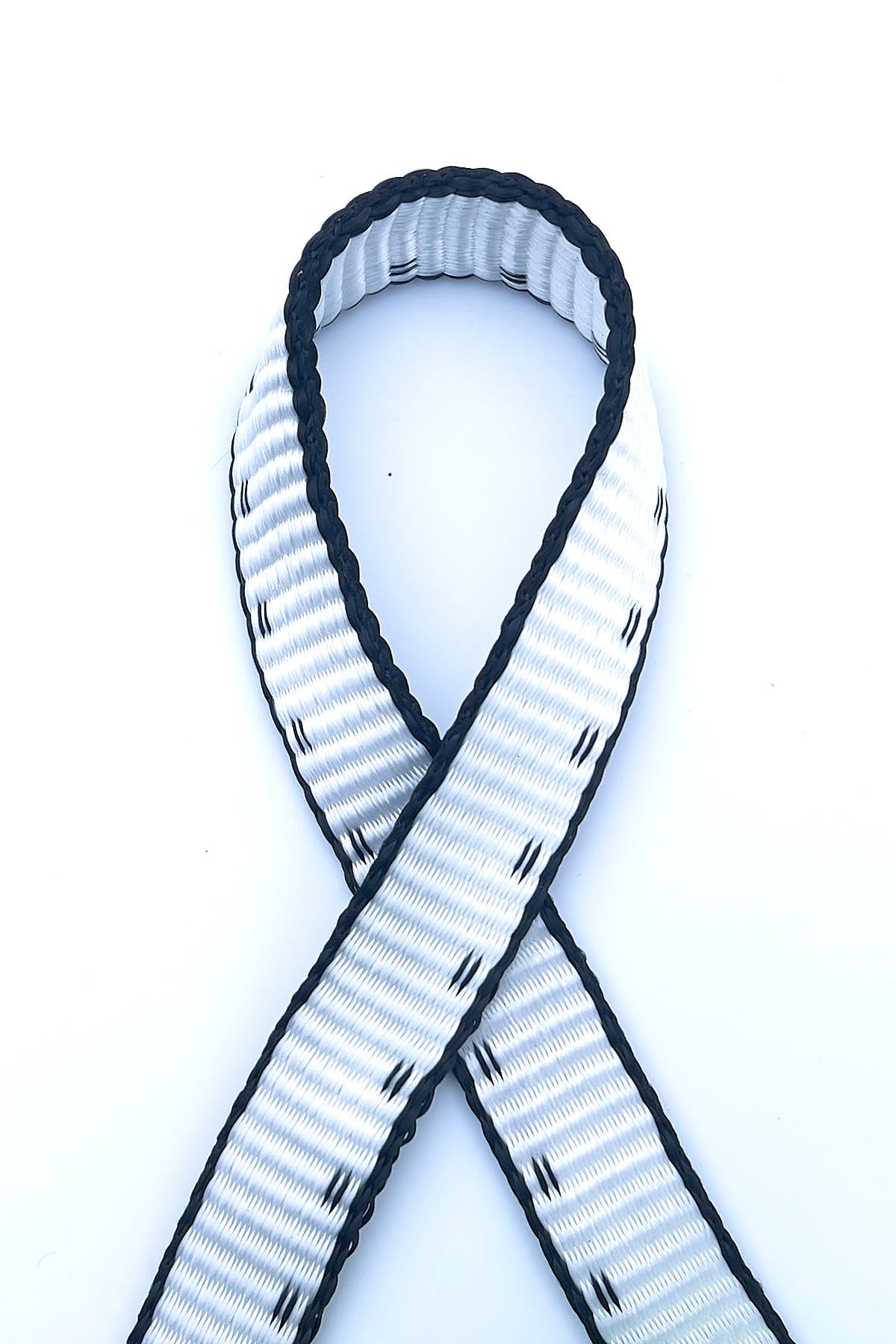

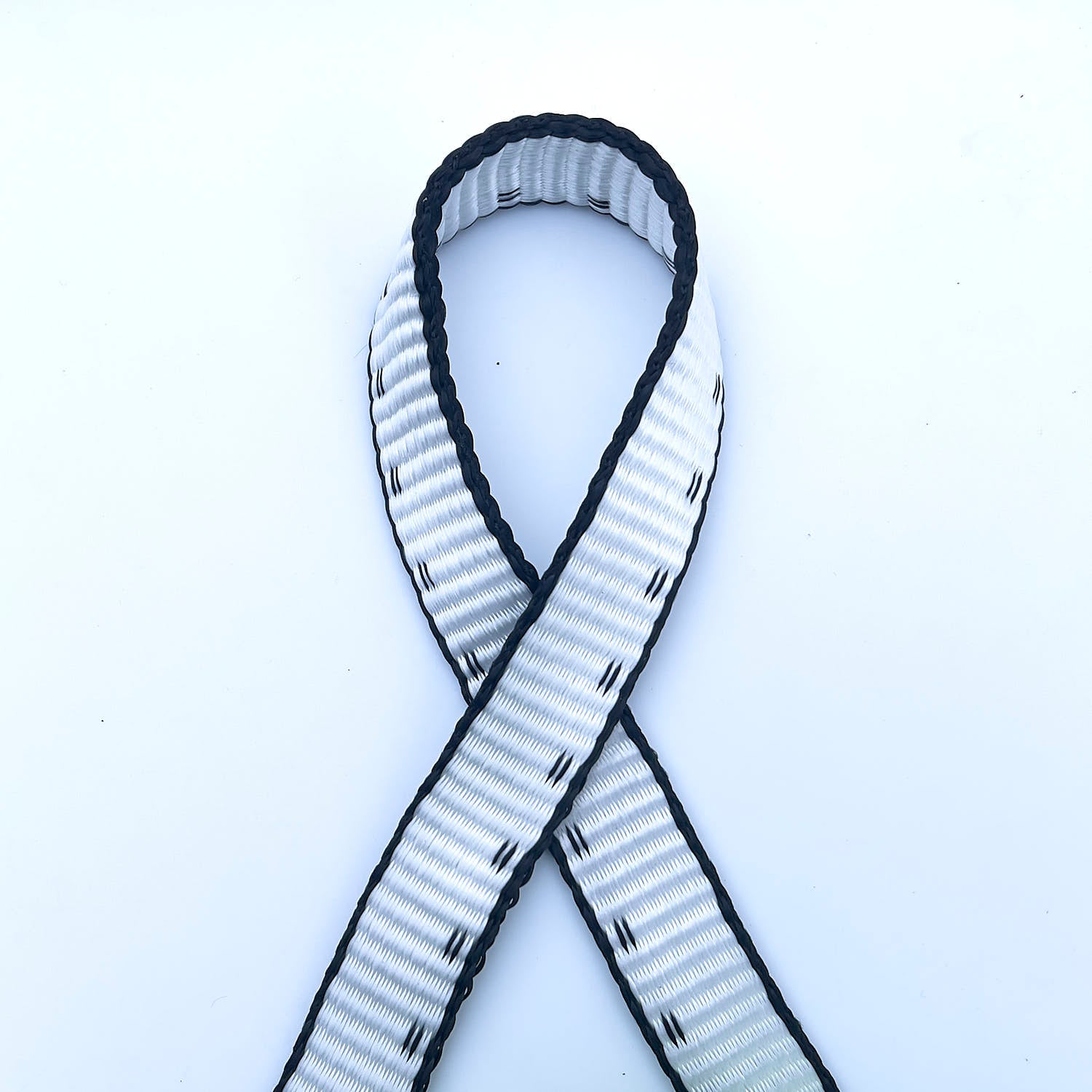

| Secondaire discontinued | 1.69% | 2.64% | 3.50% | 4.71% | 6.88% | 9.78% | 11.96% | 13.55% | 14.96% | 16.28% | 17.52% | 18.65% |
| Secondaire MK2 | 0.00% | — | — | — | 2.50% | — | — | — | — | 5.50% | — | — |
| Silk 99 | 0.23% | 0.69% | 1.04% | 1.29% | 1.57% | 1.73% | 1.86% | 2.07% | 2.17% | 2.24% | 2.39% | 2.53% |
| Spider Silk MK3 discontinued | 0.37% | 0.78% | 0.93% | 1.09% | 1.21% | 1.80% | 1.87% | 1.93% | 2.21% | 2.36% | 2.36% | 2.67% |
| Spider Silk MK4 discontinued | 0.64% | 2.00% | 2.70% | 3.12% | 3.47% | 3.71% | 3.93% | 4.11% | 4.25% | 4.40% | 4.49% | 4.67% |
| Spider Silk MK5 | 0.37% | 1.33% | 1.83% | 2.25% | 2.64% | 2.95% | 3.24% | 3.44% | 3.63% | 3.79% | 4.06% | 4.18% |
| Type 18 MKII discontinued | 1.30% | 2.61% | 4.40% | 6.33% | 7.92% | 9.22% | 10.42% | 11.41% | 12.38% | 13.14% | 13.91% | 14.59% |
