Green 20
Sewn loops
QUICK SPECS:
- ISA Stretch
- 6.2% @ 5kN · 10.4% @ 10kN
- Design
- Flat, 100% PA
- Weight
- 53 g/m (3.56 lbs / 100 ft)
- MBS
- 30 kN (6,744 lbf)
- Sewn Loop MBS
- 24 kN (5,395 lbf)
- Width
- 19.1 mm (0.75 in)
- Thickness
- 3.5 mm (0.14 in)
Batch W24AG View batch report
Description

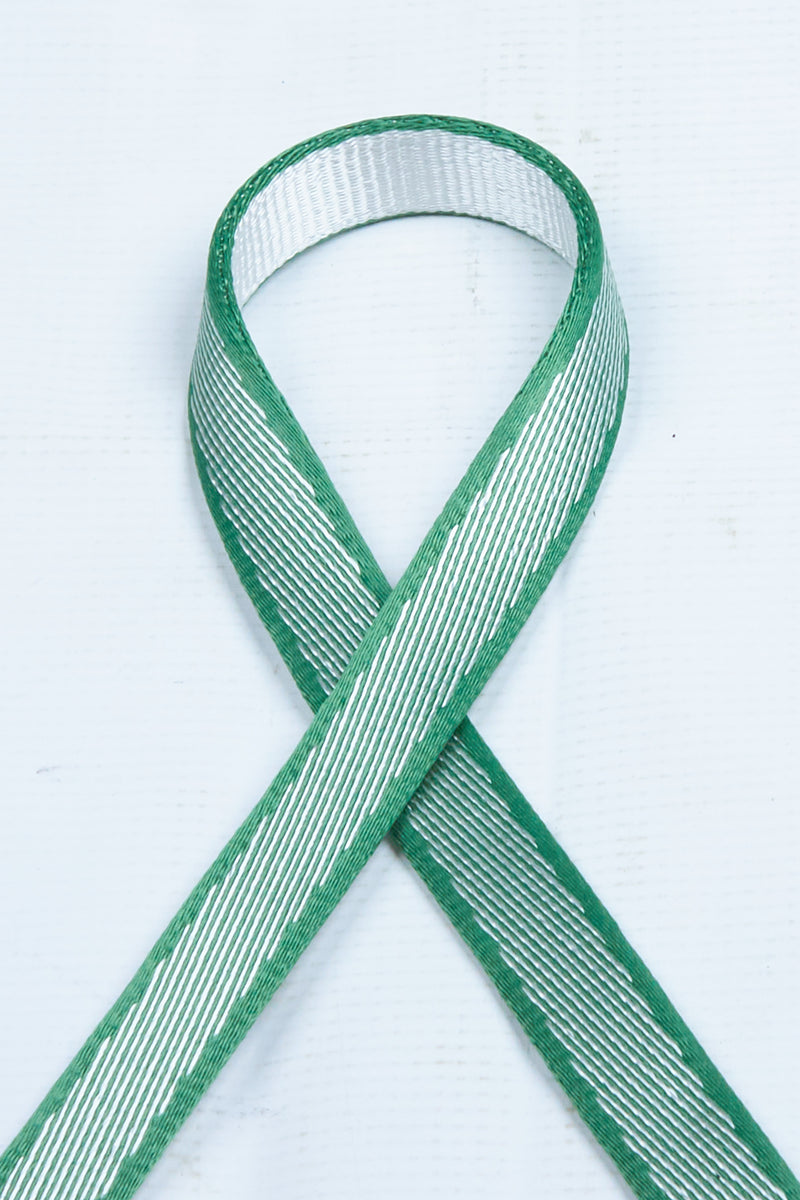

If you like our Green slackline webbing, you are going to LOVE this new 20mm version! The same great feeling, strength, and stretch as our 1" version, but narrower and thicker!
20mm width webbings bring a number of benefits to the highline world that we all can benefit from. Listed below are some of the more notable advances that this type of webbing brings to us.
Green 20 is a luscious webbing that feels oh so soft beneath your feet and has a marvelous movement and feel to it that is unmatched in the world of nylon webbings. Never has there been such a stable webbing with such power behind it!
We have limited supplies of this new 20mm Green, so order it while you can!
Made in the US.

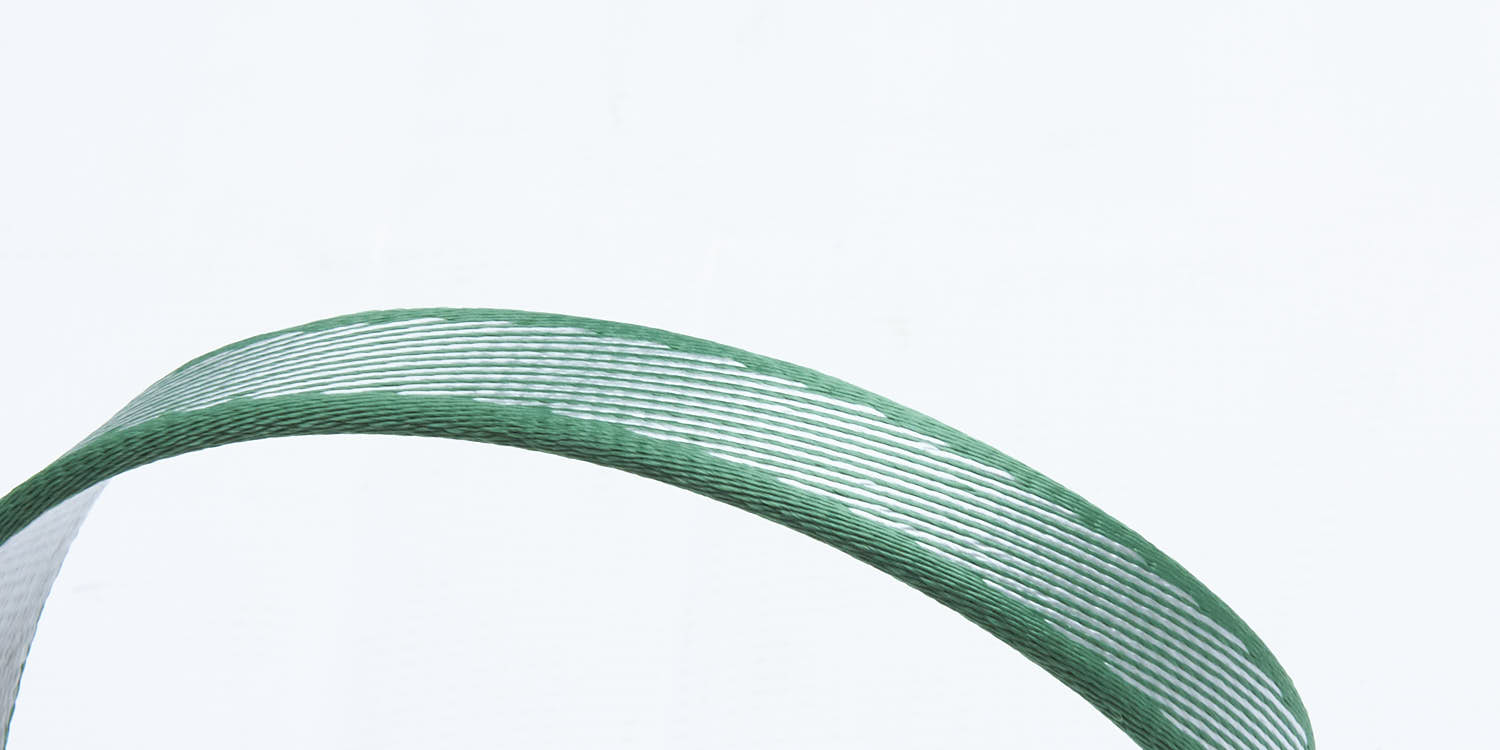

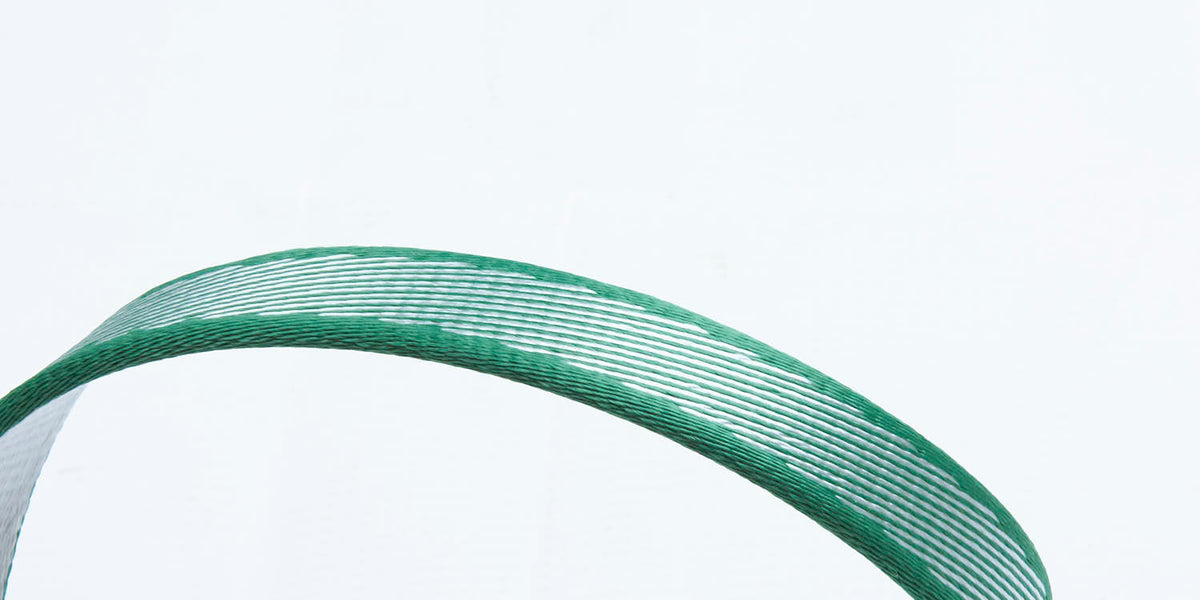

Lightweight & Strong
A strength-to-weight ratio that is built for big highline projects
Green 20 weighs in at with a strength of . This gives Green 20 quite a high strength-to-weight ratio, packing the maximum punch in the smallest package. This ensures an easy hike in and a confident walk on the line.
The construction of Green 20 puts a lot of fibers in the middle of the webbing, hidden from the elements. This gives Green 20 an extended lifespan when used for the long term. It will retain its strength and stretch better than other nylon webbings due to how much yarn is hidden from the faces. So for those permarig projects, Green 20 is a great option for a strong nylon that is also quite bouncy.

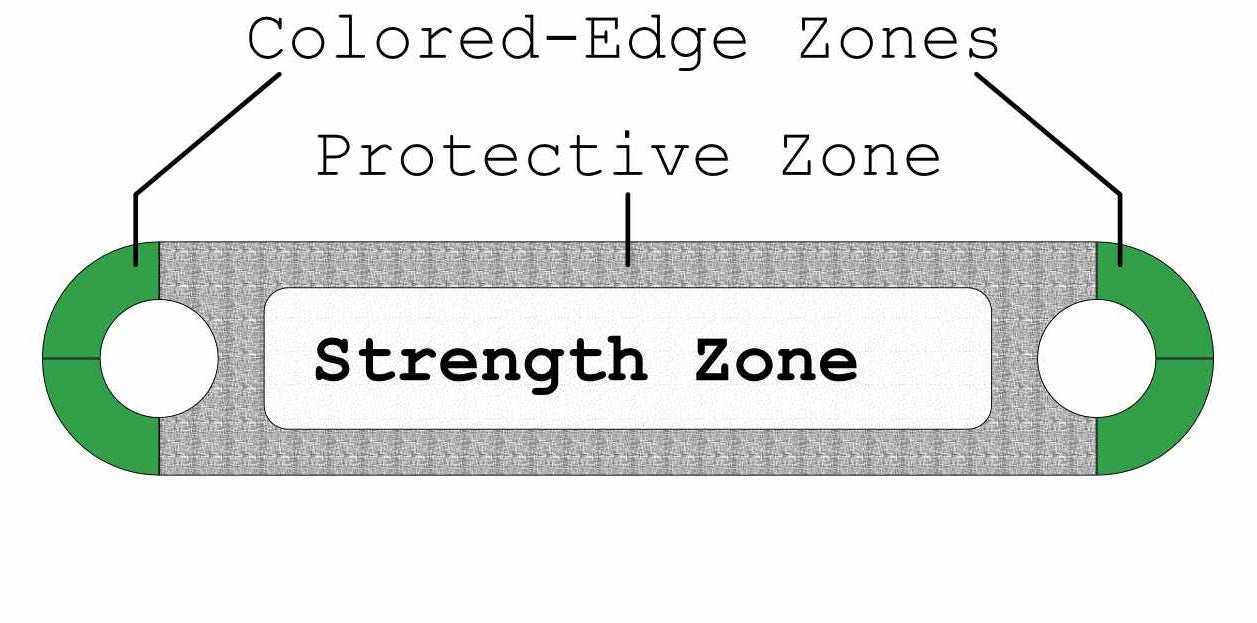

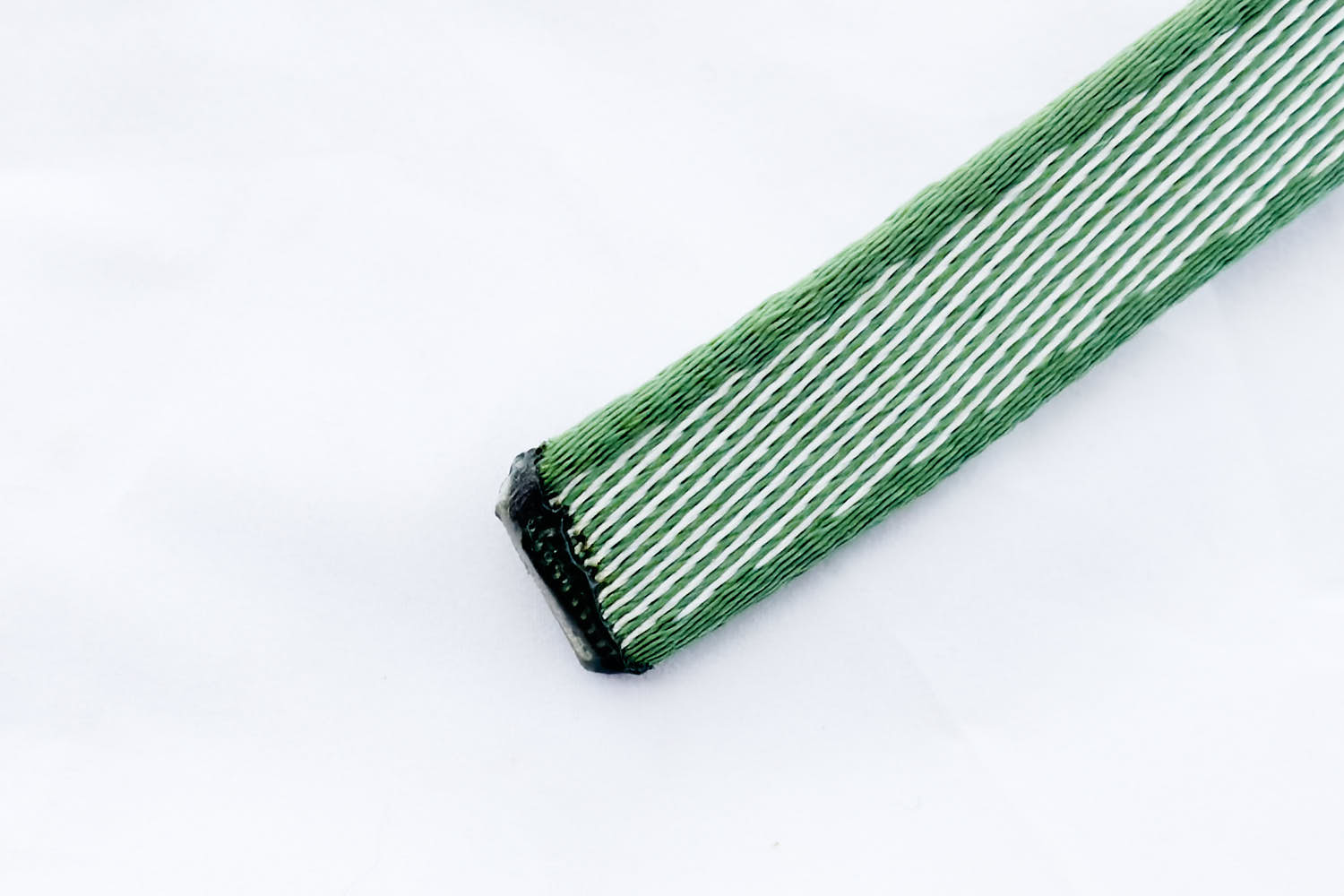

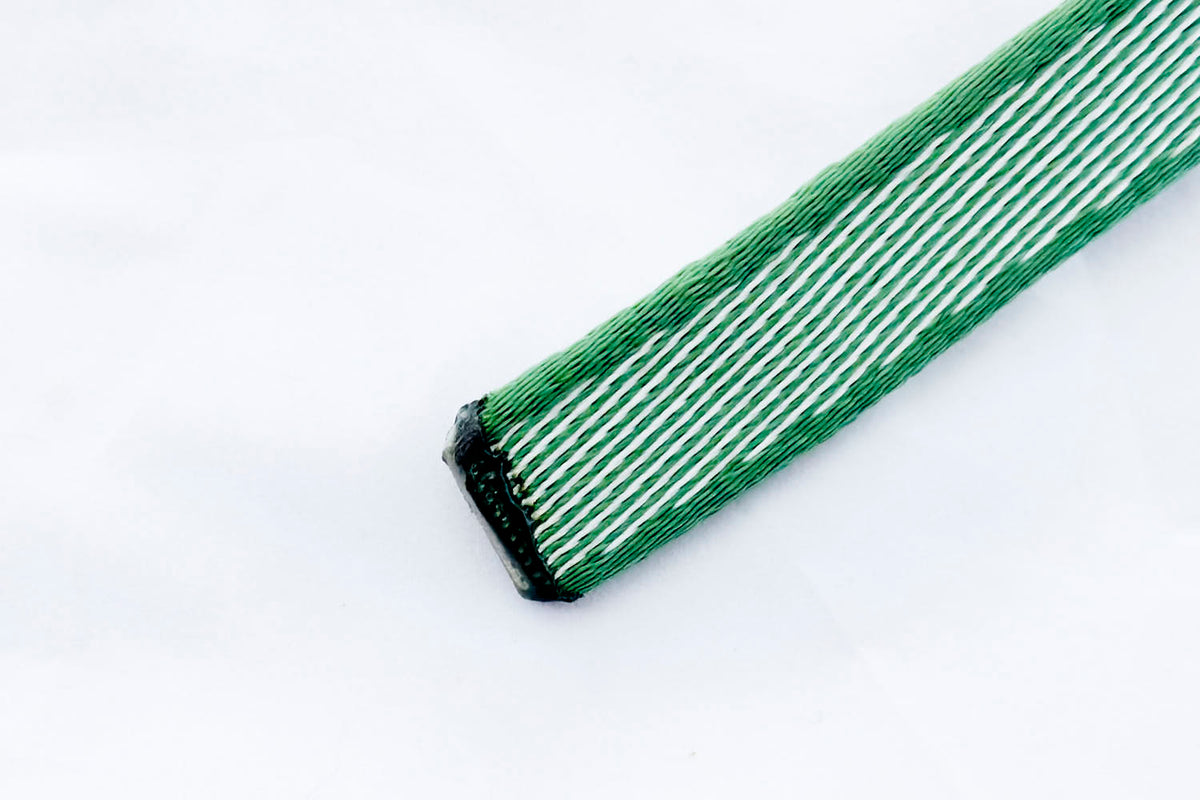

Three-Zone Construction
Narrow and thick for cozy walks and catches.
Due to Green 20’s exceptional thickness, the Strength Zone comprises the majority of the webbing’s structure. These high-strength yarns are embedded deep within the core, shielded from environmental exposure, which significantly enhances Green 20’s durability and resistance to heavy use.
Surrounding the strength zone fibers is a protective layer of nylon yarn. These yarns are similar to the yarn in the strength zone, but are woven tightly in a twill weave, which resists abrasion and provides a very smooth and soft face that feels great on the hands and feet. This protective layer serves as both a barrier to the Strength Zone and an interface to the walker, making it a critical component in the structure of weave.
At the edge of Green 20 is a vibrant group of green nylon yarn. This zone is not woven any differently than the protective zone, but it is made with a solid color to enhance the visibility towards the edge of the webbing, giving Green 20 a nice visual affect while it is being walked on. Since Green 20 is so thick, these edges naturally become quite round and soft to the touch, making pillowing unecessary.
About This Webbing
Certification, design, materials, compatibility and sewing — the fixed properties of this webbing, the same on every batch we weave.
Material
- Material
- 100% Nylon (Polyamide)
- Weave structure
- Flat
- Weave features
- Pillowed Edges
- Weave zoning
- Four-Zone Construction with Strength, Bi-Color Outer, Edge, and Pillowed zones
Walkability
- Style
- Best used for walking big projects with playfulness.
- Optimum tension
- 1.0 - 4.5 kN (225 - 1,000 lbf)
- Preferred lengths
- 60 - 400m (200 - 1,312 feet)
Highline
- Highline approved
- Yes
- Backup length
-
How long should the backup be with a Green 20 mainline?
Mainline Backup 50 m 56 m 60 m 67.2 m 100 m 112 m 120 m 134.4 m For any other length, make the backup 12% longer than the main.
Compatible hardware
- Webbing Anchors
- Webbing Grips
Sewing
Sewn Loop
24.47 kN MBSmean 27.73 kN · n = 5measured W24AG
3D preview Click to interact Loading 3D… Drag to tumble · scroll to zoom · double-click to reset
| Sewn LoopPattern 502 | |
|---|---|
| Pattern | 502 · Bartack ramp for 20 mm webbings |
| Pattern dimensions | 74.5 × 16 mm (L × W) (3.0 × 0.6 in) |
| Opening size | 130 mm (5.1 in) |
| Webbing fold | 210 mm (8.3 in) |
| Sleeve length | 200 mm (7.9 in) |
| Bobbin thread | Amann Xtreme Tech with Dyneema · 220-tex · Yellow |
| Needle thread | Amann Xtreme Tech with Dyneema · 220-tex · Red |
| Stitches | 184 |
Test Data
Measured values from the current production batch (W24AG · Mar 2024). These update with every batch we produce.
Dimensions
- Width
- 19.1 mm (0.75 in)
- Thickness
- 3.5 mm (0.14 in)
- Weight
- 53 g/m (3.56 lbs / 100 ft)
Strength
- MBS
- 30.92 kN (6,951 lbf)
- WLL
- 10 kN (2,248 lbf)
- Alpine WebLock
- 27.69 kN (6,225 lbf)
- MightyLock
- 24.28 kN (5,458 lbf)
- Sewn Loop
- 24.47 kN (5,501 lbf)

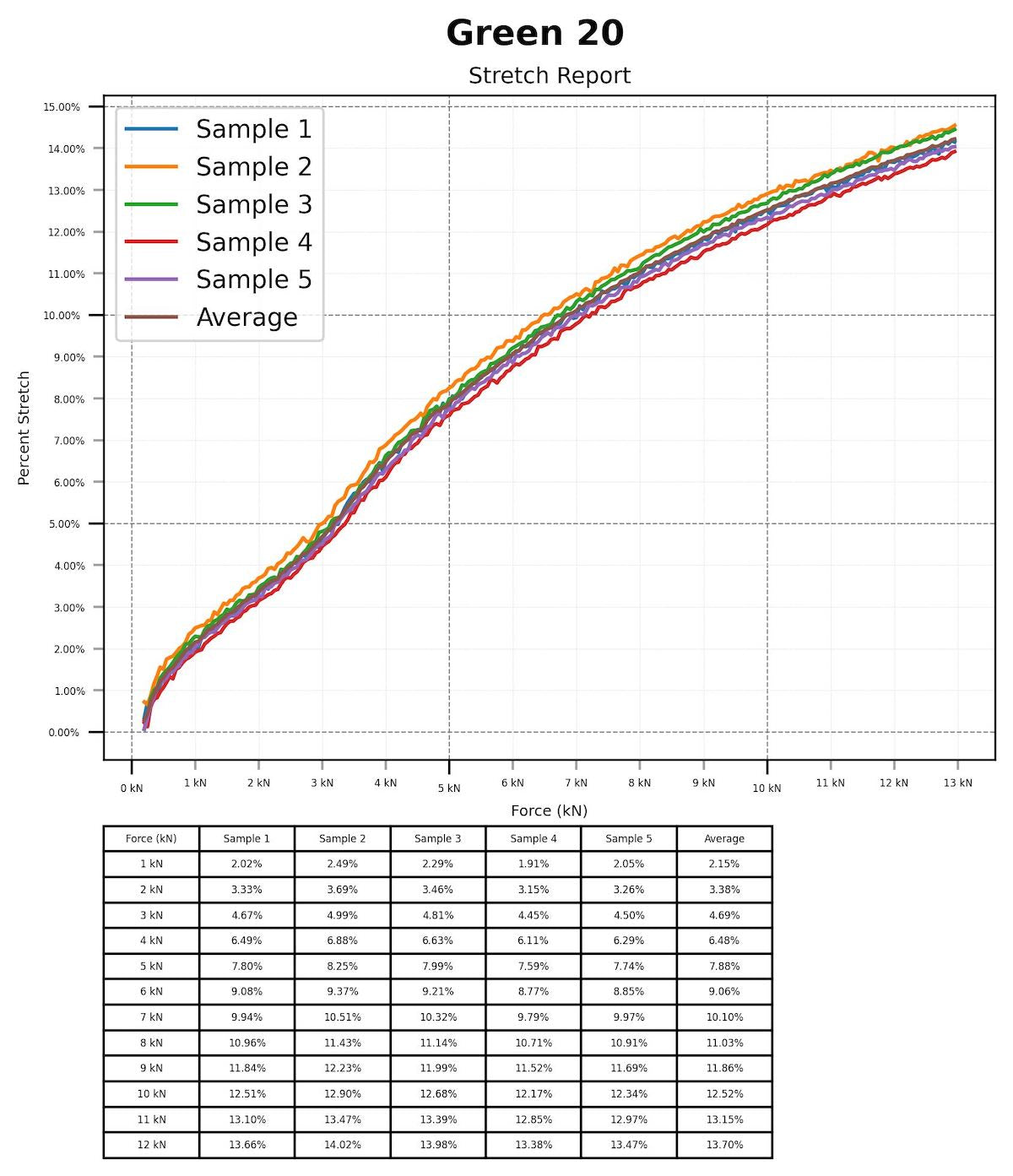

Stretch
A great deal of stretch for a great deal of fun.
Green 20 feels as if it stretches infinitely. It does not compare to a freestyle webbing, but for bigger lines where dynamics are preferred, Green 20 shines. You can achieve massive dynamic moves without ever feeling like you hit the bottom, which is refreshing for a strength-first nylon design.
Not only does Green 20 exhibit a more playful stretch curve than typical high-strength nylon webbings, its performance is optimized within the standard highline tension range of 1 - 6 kN (225 - 1,350 lbf). This ensures a consistent and responsive feel without excessive effort when tensioning.
- ISA Stretch @ 5 kN
- 6.15%
- ISA Stretch @ 10 kN
- 10.35%
Standardized ISA stretch method, 200 mm gauge.
| Force | Stretch |
|---|---|
| 1 kN | 2.15% |
| 2 kN | 3.38% |
| 3 kN | 4.69% |
| 4 kN | 6.48% |
| 5 kN | 7.88% |
| 6 kN | 9.06% |
| 7 kN | 10.10% |
| 8 kN | 11.03% |
| 9 kN | 11.86% |
| 10 kN | 12.52% |
| 11 kN | 13.15% |
| 12 kN | 13.70% |
Stretch-curve method — read off each webbing’s load–elongation curve, not the standardized ISA gauge test.
