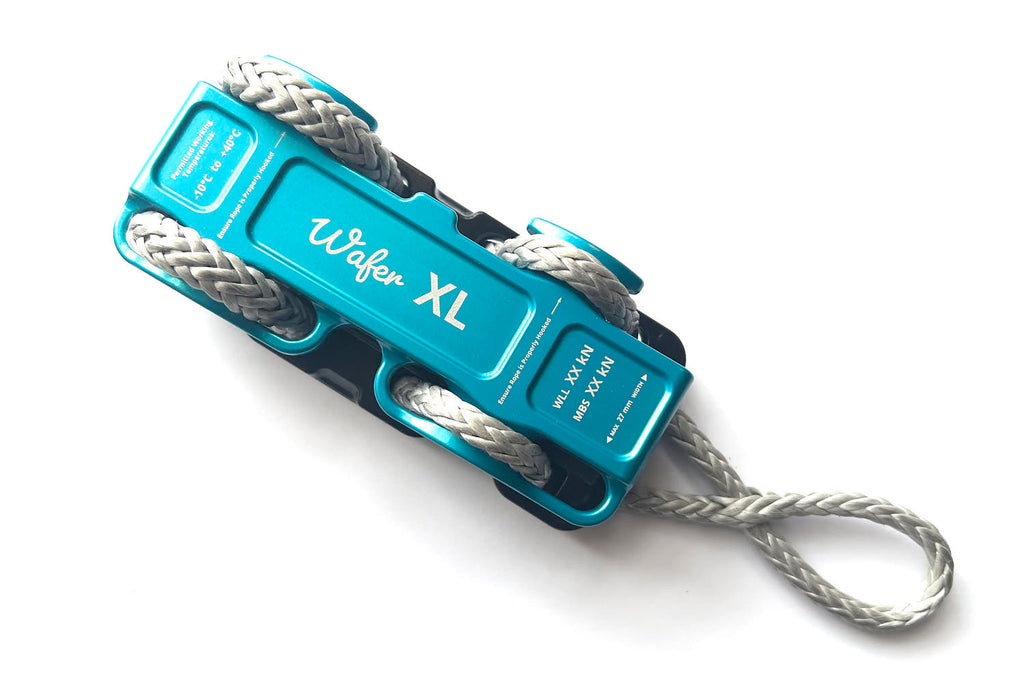

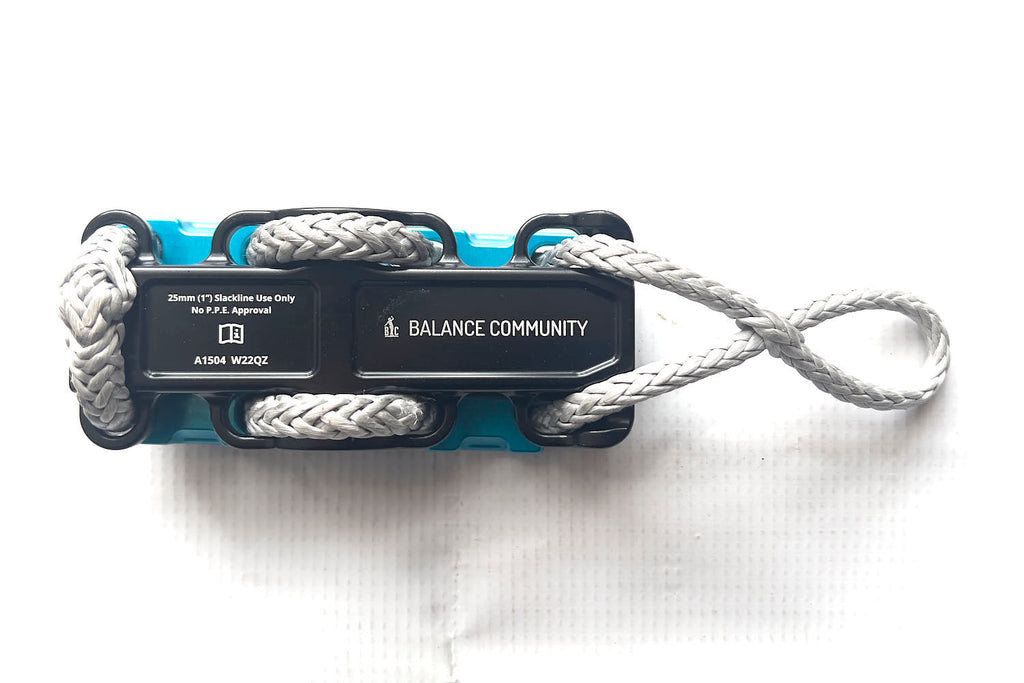

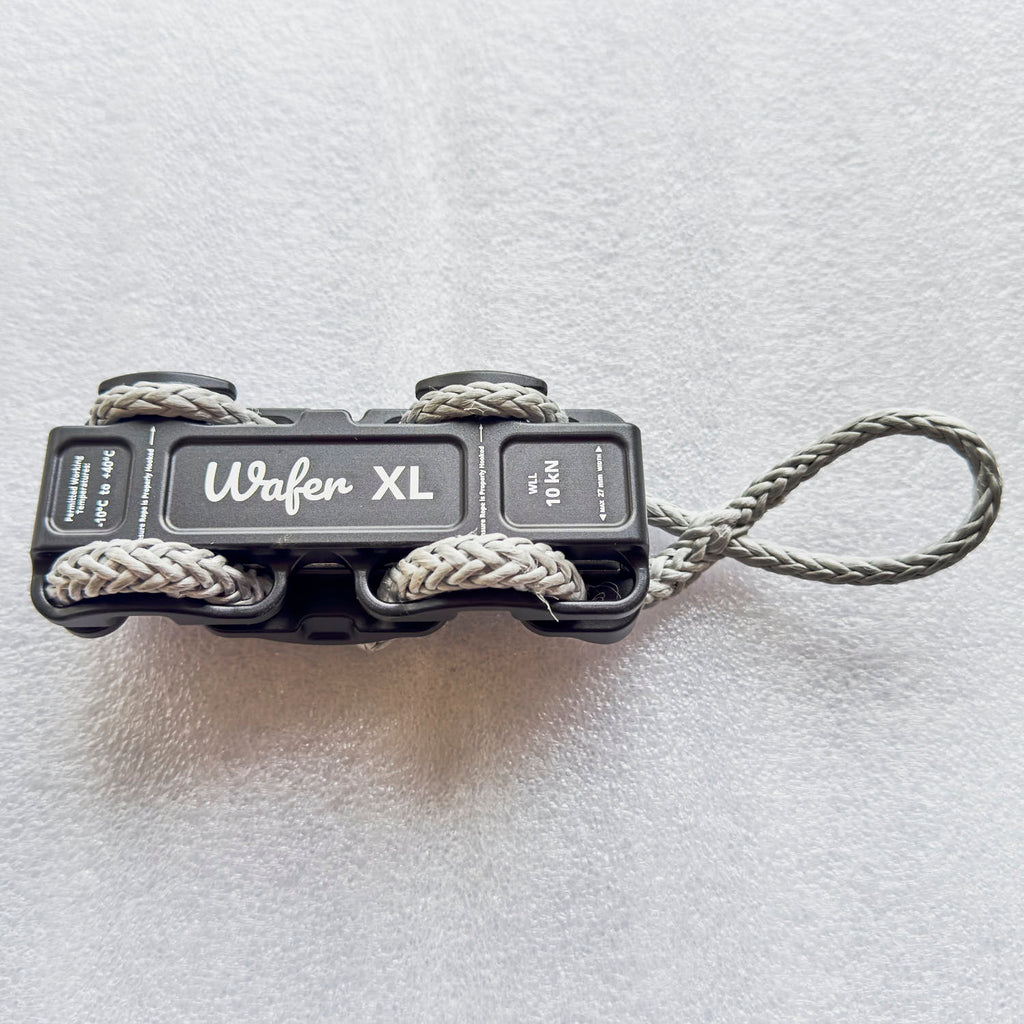

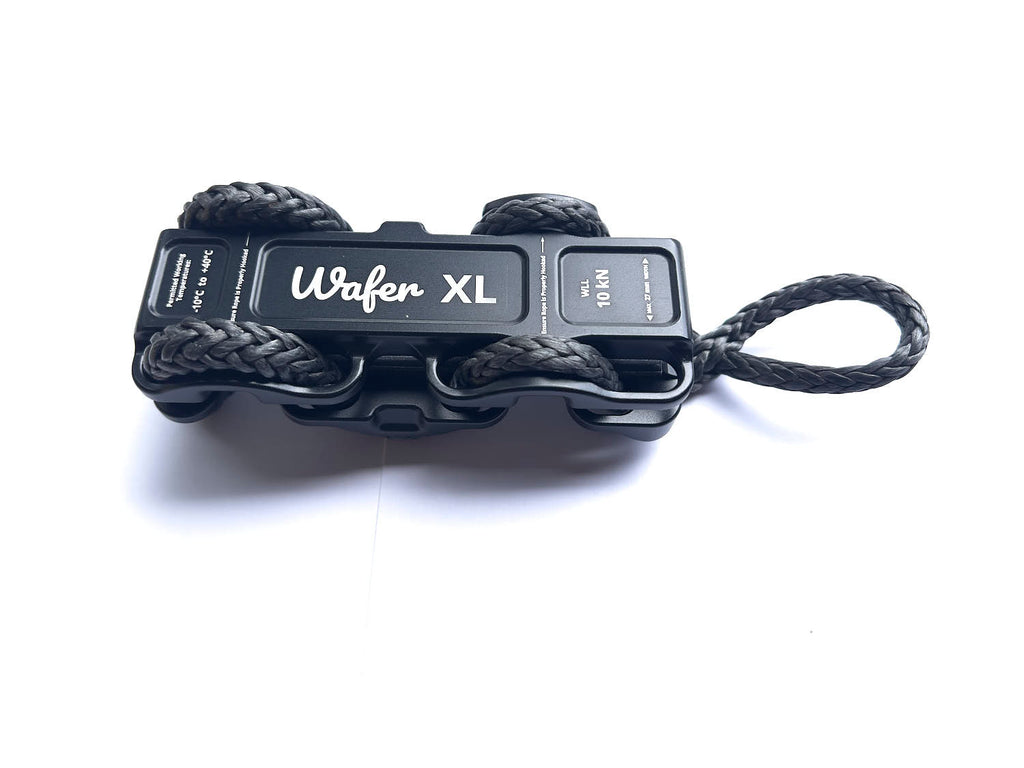

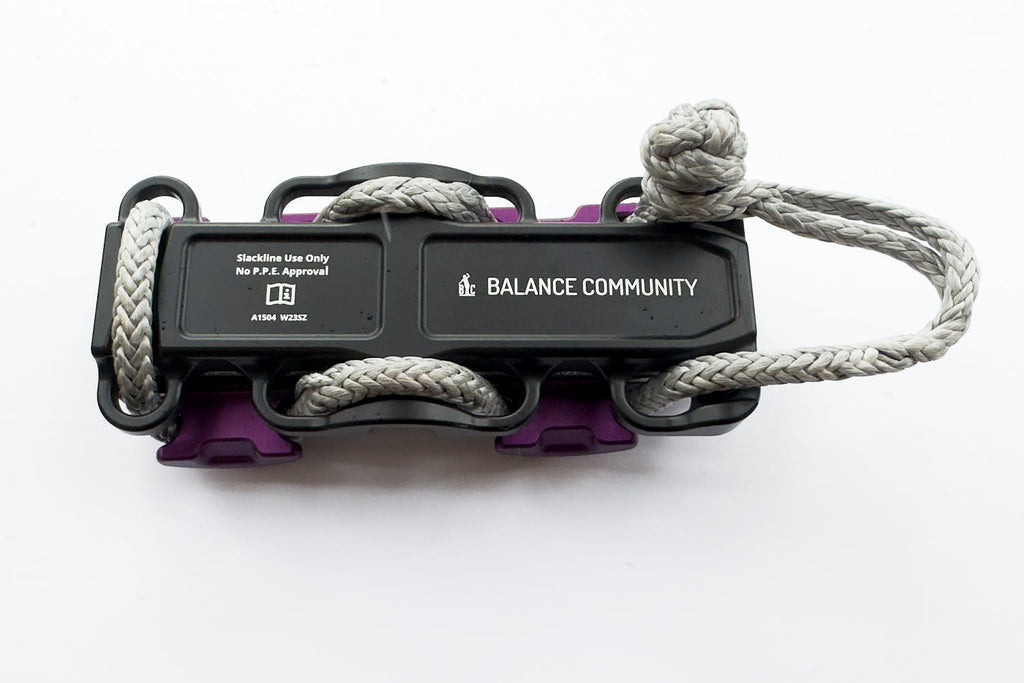

Wafer XL

Full-Sized Webbing Grip

A full-sized webbing grip with a lightweight constuction and optimal gripping strength. Works well with all low tech webbings and select high tech webbings. The Wafer XL is the right grip for tensioning your lines, no matter the length.


Say hello to the newest addition to our Webbing Grip family - the Wafer XL. The big brother to our very popular Wafer, with a full length rubber pad that is capable of gripping up to 10 kN without slippage.

This lovely device use the same principle for gripping as our Wafer - a Dyneema sling wrapped through both top and bottom plates that adds clamping pressure to the webbing between the plates with increased tension. However, the Wafer XL has an extra wrap to increase the clamping force even further.

The Wafer XL uses the same Linegrip rubber as the Wafer, but is full length - meaning the same length as a standard Linegrip. However, the weight of the Wafer XL is just 212 grams, less than half the weight of the Linegrip!

Made in the US

Updated Design information coming soon.


Wafer XL Dimensions

Width – 50.0 mm (1.97 inches)

Length (No Rope) – 115.5 mm (4.55 inches)

Length (With Rope) – 190.0 mm (7.48 inches)

Thickness – 25.8 mm (1.02 inches)

Rubber Length – 107.0 mm (4.21 inches)

Approved Webbing Widths – 16.0 - 27.0 mm (0.63 - 1.06 inches)

Weight – 212 g (7.48 oz.)


Max Load – 10.0 kN (2,248 lbf)


Plate Material – Anodized Aluminum Alloy 7075

Rubber Material – LineGrip signature rubber mix

Rope Material – Amsteel 78, Samthane coated Silver

Rubber Properties

Common Slippage Threshold – Does not slip below 150% of WLL

Operating Temperatures – -10° to +40° C (15° to 105° F)

Learn More – LineGrip Rubber Technology
