Petzl Micro Traxion
Compact progress-capture pulley
A compact, lightweight progress-capture pulley that doubles as a simple pulley when you lock the cam open, perfect for hauling, self-rescue, and pulley systems.
View Specs
$165.00 USD
QUICK SPECS:
- MBS
- 15 kN (3,372 lbf)
- WLL
- 5 kN (1,124 lbf)
- Weight
- 85.0 g (3.0 oz)
- Efficiency
- 91%
- Rope Diameters
- 7–11 mm
Description
MICRO TRAXION is a compact and lightweight progress-capture pulley (85 g) designed for crevasse rescue, hauling, and self-rescue, and for use as an emergency ascender. The cam can be locked in the open position so the device can be used as a simple pulley. Sealed ball bearings provide excellent efficiency (91 %).
- Versatile:
- Designed for crevasse rescue, hauling, self-rescue, and for use as an emergency ascender

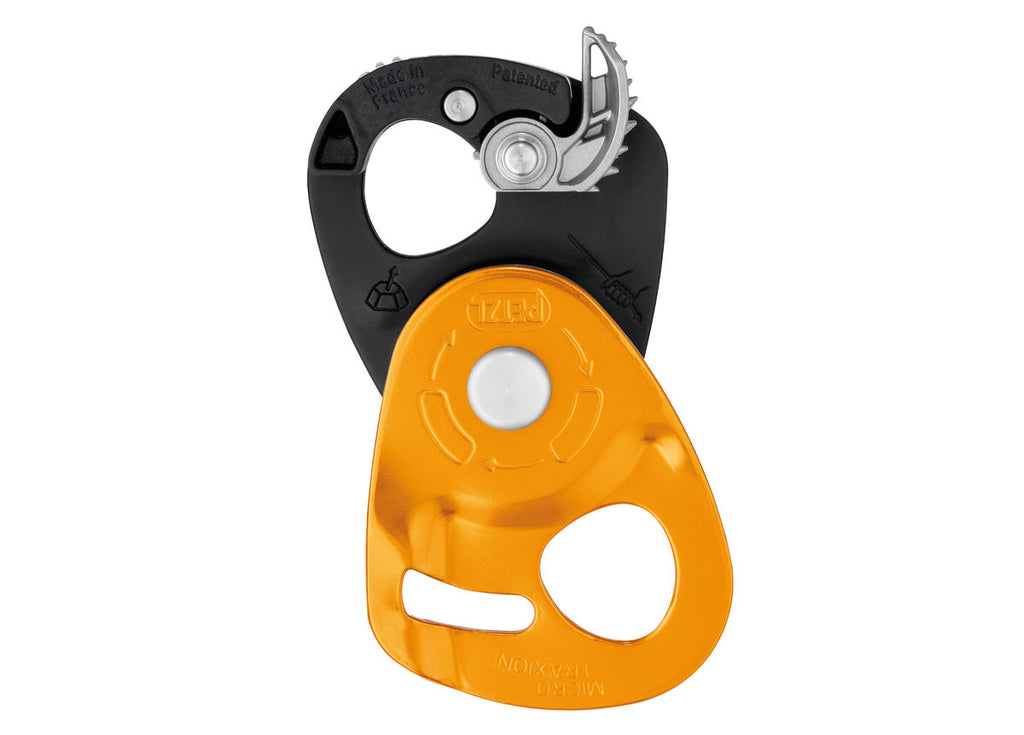

- May be used as a simple pulley by locking the cam in the raised position
- Very light and compact:
- Only 85 g
- Hole allows an Sm’D carabiner to be connected to the pulley with an cord, making the device loss-proof
- High efficiency:
- Sealed ball bearings provide excellent efficiency (91 %)
- Works even on frozen or muddy ropes
- For use on 7 to 11 mm diameter ropes
- Rope installation diagrams are engraved inside the pulley
Dimensions
- a — Outer Length
- 67.0 mm (2.64 in)
- b — Outer Width
- 53.0 mm (2.09 in)
- c — Height / Thickness
- 24.0 mm (0.9 in)
- d — Anchor Hole Length
- 20.0 mm (0.79 in)
- e — Anchor Hole Width
- 18.8 mm (0.74 in)
- f — Anchor Hole Thickness
- 17.3 mm (0.68 in)
- Sheave Diameter
- 27.0 mm (1.06 in)
- Acceptable Rope Sizes
- 7.0 - 11.0 mm (0.28 - 0.43 in.)
- Weight
- 85.0 g (3.0 oz)
Strength
- MBS
- 15 kN (3,372 lbf)
- WLL
- 5 kN (1,124 lbf)
