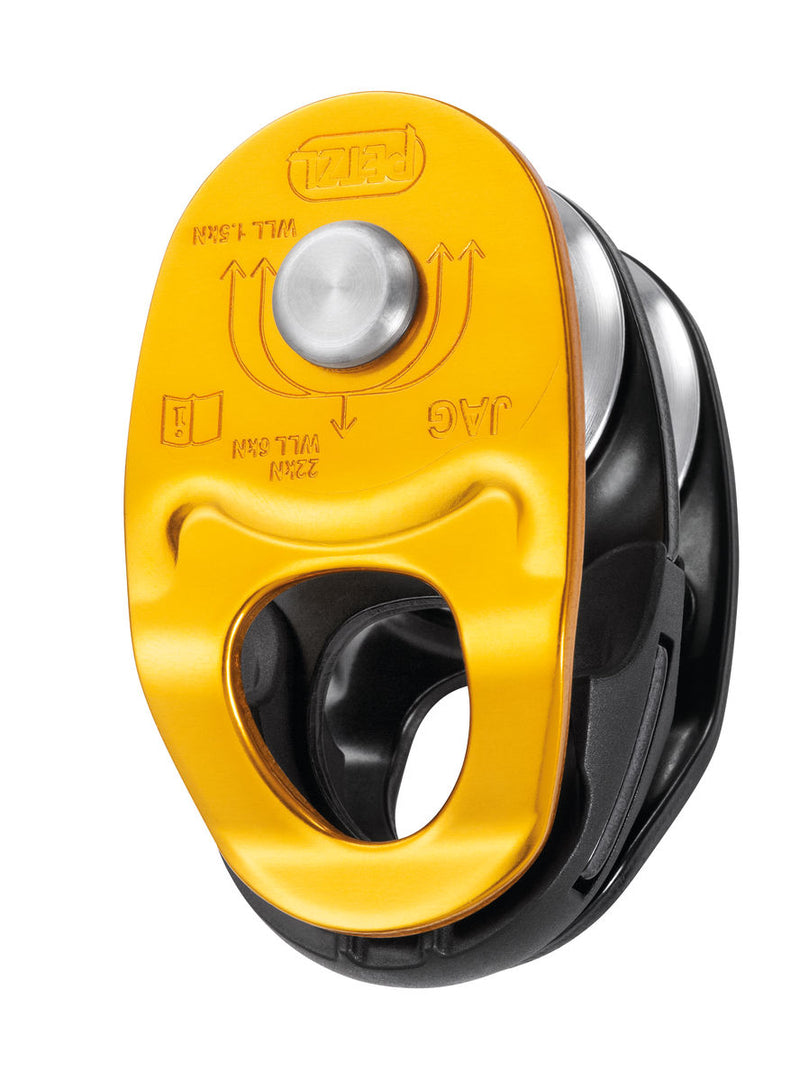

Petzl JAG Pulley
High-efficiency double pulley
Half of the famous 4:1 JAG haul system, pair it with the JAG TRAXION and you've got a compact, sealed-ball-bearing tensioning setup that pulls like a dream. Built for efficiency!
View Specs
$100.00 USD
QUICK SPECS:
- MBS
- 22 kN (4,946 lbf)
- WLL
- 6 kN (1,349 lbf)
- Weight
- 120.0 g (4.2 oz)
- Sheave Diameter
- 33.8 mm (1.33 in)
- Tread Diameter
- 27.0 mm (1.06 in)
Description
The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
- Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
- Sheaves mounted on sealed ball bearings for excellent efficiency
Dimensions
- a — Pulley Length
- 68.5 mm (2.7 in)
- b — Pulley Width
- 38.6 mm (1.52 in)
- c — Pulley Height
- 43.0 mm (1.69 in)
- d — Sheave Diameter
- 33.8 mm (1.33 in)
- e — Tread Diameter
- 27.0 mm (1.06 in)
- f — Anchor Hole Length
- 20.6 mm (0.81 in)
- g — Anchor Hole Width
- 19.5 mm (0.77 in)
- h — Anchor Hole Thickness
- 18.1 mm (0.71 in)
- Weight
- 120.0 g (4.2 oz)
- Acceptable Rope Sizes
- Up to 11.0mm (0.52 inches)
Strength
- MBS
- 22 kN (4,946 lbf)
- WLL
- 6 kN (1,349 lbf)
Material
- Primary material
- Aluminum Alloy
- Secondary material
- Aluminum Alloy
- Axle Type
- Sealed ball bearings with 91% efficiency
Resources
- Technical Notice Covers the JAG pulley family(opens external site in a new tab)
- EU Declaration of Conformity (opens external site in a new tab)
- UKCA Declaration of Conformity (opens external site in a new tab)
- Equipment Maintenance Tips (opens external site in a new tab)
- PPE Inspection Procedure (opens external site in a new tab)
- PPE Checklist (opens external site in a new tab)
