Front Pin

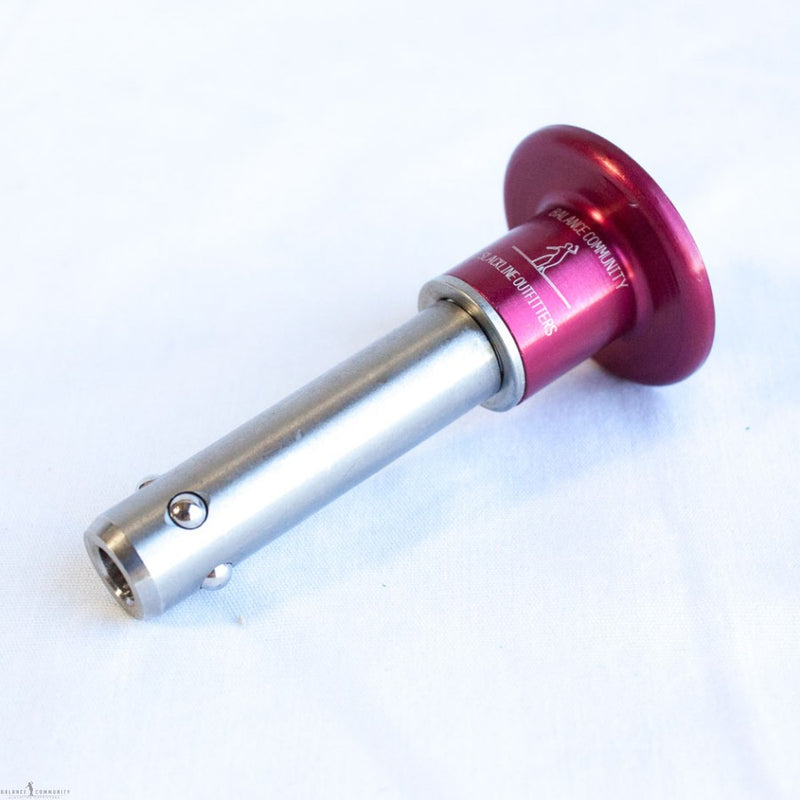

AWL 6 push-button front pin
The push-button front pin for the Alpine WebLock 6.0 and 6.1, a rock-solid, bomb-proof locking mechanism that makes loading your webbing effortless. Available in 1-inch and 20mm to match your weblock!
View Specs
$30.00 USD
QUICK SPECS:
- Weight
- 72.0 g (2.5 oz)
- Double-Shear Strength
- 164 kN (36,891 lbf)
- Pullout Strength
- 10 kN (2,316 lbf)
- Pin Diameter
- 12.7 mm (0.5 in)
- Pin Length
- 38.0 mm (1.5 in)
- Number of Locking Balls
- 2
Description
The new push button pin for Alpine WebLock 6.0 and 6.1 is the ultimate solution for the front pin on these devices. With a rock solid construction and bomb-proof locking mechanism, installing your webbing in your webbing anchor has never been this easy.
This pin will work for the Alpine WebLock 6.0 and 6.1. We also have the 20mm version available, if need one for the AWL 6.1 20mm.
Dimensions
- Pin Diameter
- 12.7 mm (0.50 in)
- Weight
- 72 g (2.54 oz)
- Locking Balls
- 4
| Weblock Width | Pin Length |
|---|---|
| 1-Inch | 38.3 mm (1.51 in) |
| 20mm | 32.6 mm (1.28 in) |
Strength
- Double-Shear Strength
- 164 kN (36,891 lbf)
- Pullout Strength
- 10 kN (2,316 lbf)
Material
- Pin Material
- CRES 17-4 pH Stainless Steel
- Handle Material
- Anodized Aluminum Alloy 2024
- Ball Material
- CRES 440C Stainless Steel
