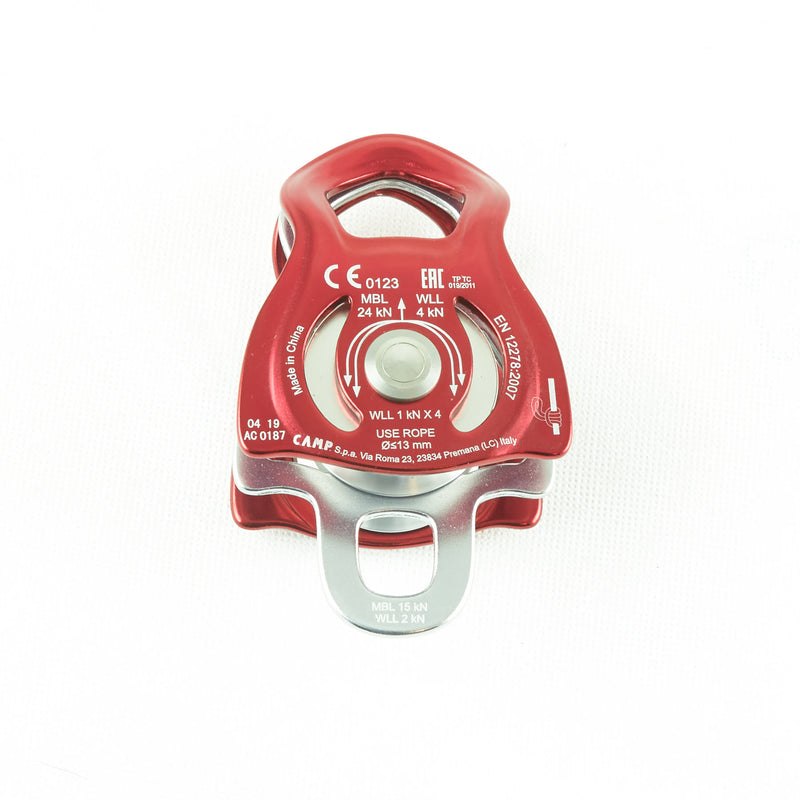

CAMP Dryad Double Pulley
m
$66.00 USD
Skip to product information
A compact, efficient double pulley that's a longline favorite, small enough to slip into your pack, yet powerful enough for serious tensioning. Pack it, pull it, send it!
View Specs
$66.00 USD
QUICK SPECS:
- MBS
- 24 kN (5,395 lbf)
- WLL
- 4 kN (899 lbf)
- Weight
- 169.0 g (6.0 oz)
- Sheave Diameter
- 36.1 mm (1.42 in)
- Tread Diameter
- 28.2 mm (1.11 in)
Description
The CAMP Dryad Double Pulley is a compact and efficient double pulley that is fantastic for longlines. It's small enough that it fits nicely in your pack and big enough to provide a powerful tensioning experience.
Dimensions
- a — Pulley Length
- 102.7 mm (4.04 in)
- b — Pulley Width
- 61.4 mm (2.42 in)
- c — Pulley Height
- 47.1 mm (1.85 in)
- d — Sheave Diameter
- 36.1 mm (1.42 in)
- e — Tread Diameter
- 28.2 mm (1.11 in)
- f — Anchor Hole Length
- 20.7 mm (0.81 in)
- g — Anchor Hole Width
- 26.3 mm (1.04 in)
- h — Anchor Hole Thickness
- 11.8 mm (0.46 in)
- i — Becket Hole Length
- 16.1 mm (0.63 in)
- j — Bechet Hole Width
- 14.0 mm (0.55 in)
- k — Becket Hole Thickness
- 3.1 mm (0.12 in)
- Weight
- 169.0 g (6.0 oz)
- Acceptable Rope Sizes
- Up to 13.0mm (0.52 inches)
Strength
- MBS
- 24 kN (5,395 lbf)
- WLL
- 4 kN (899 lbf)
Material
- Primary material
- Aluminum Alloy
- Secondary material
- Aluminum Alloy
- Axle Type
- Self-lubricated brass bushings, efficiency 80%
