8mm Twist Shackle

$9.90

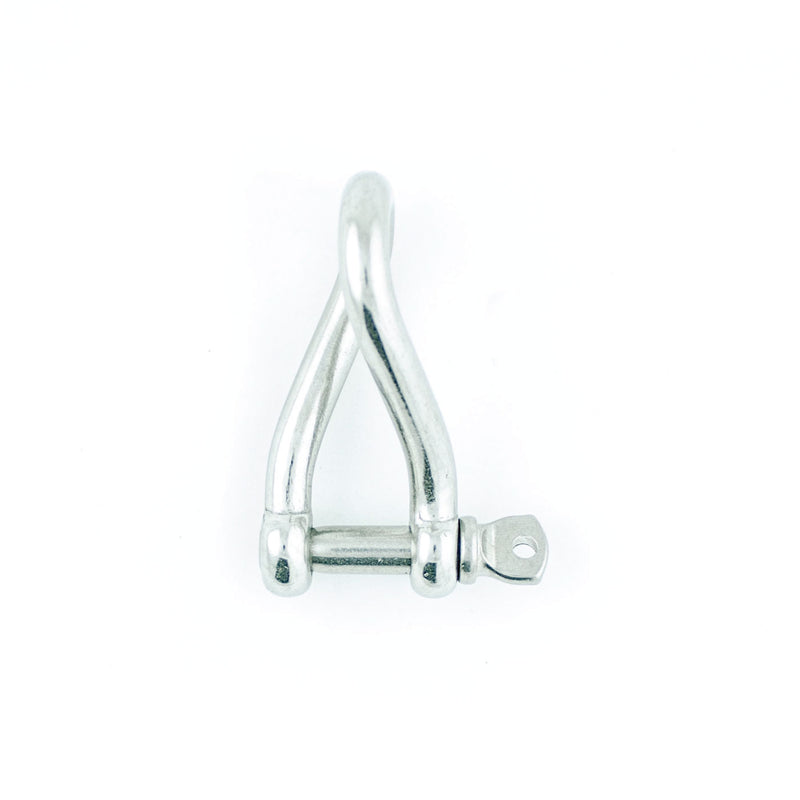

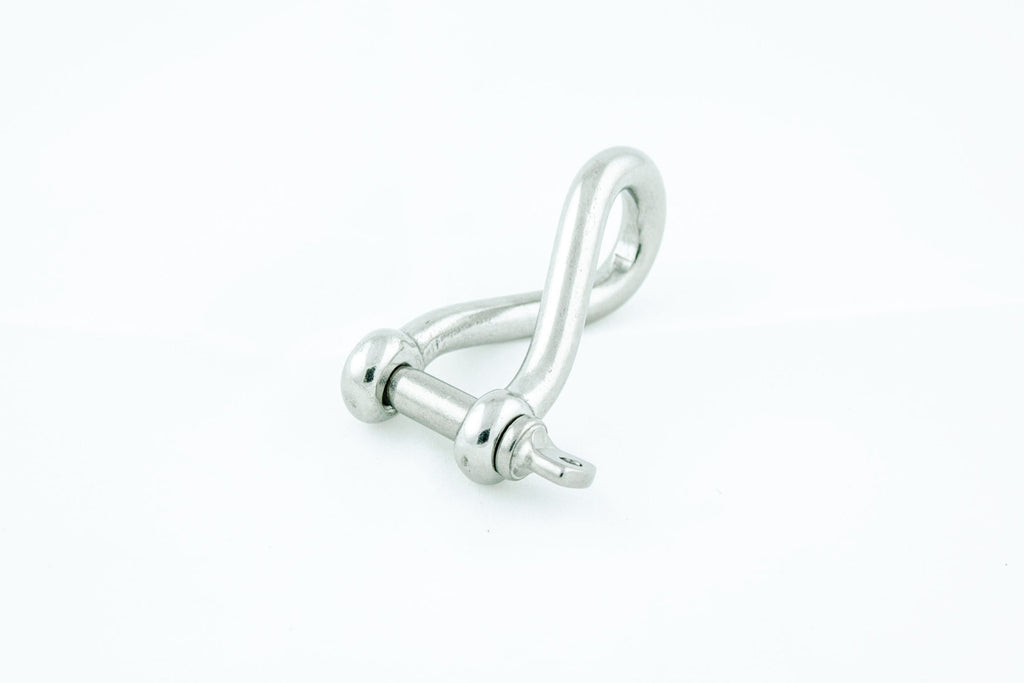

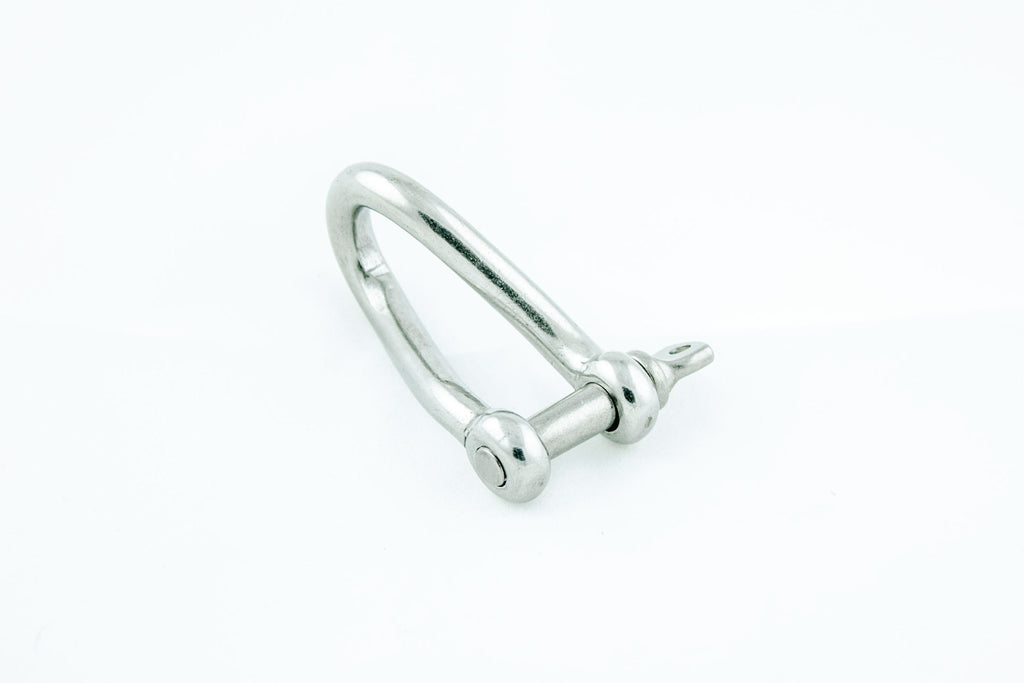

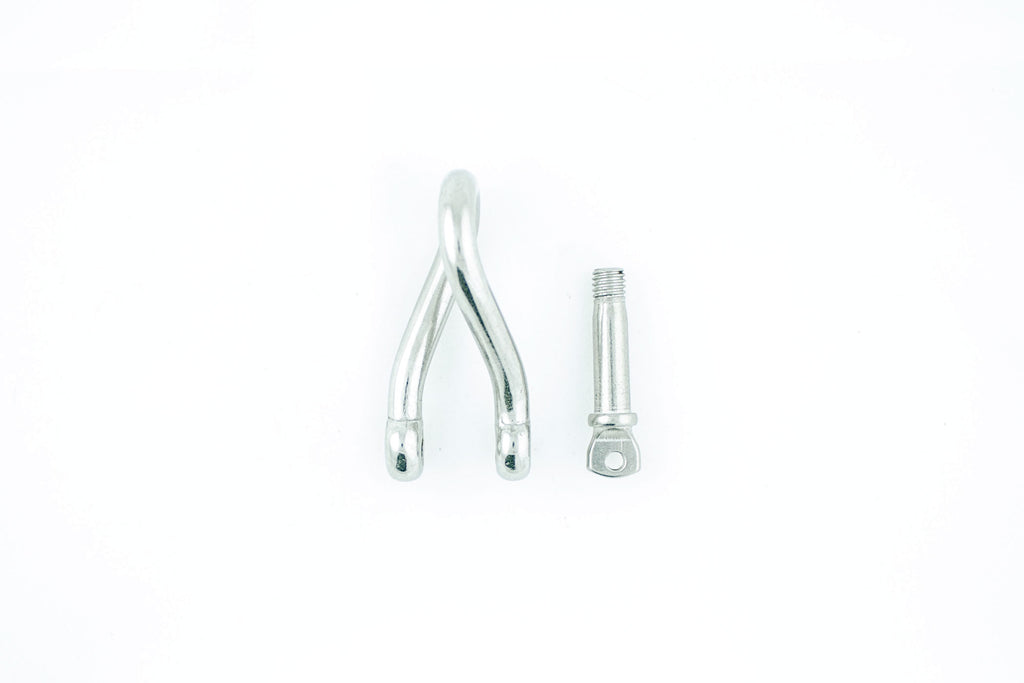

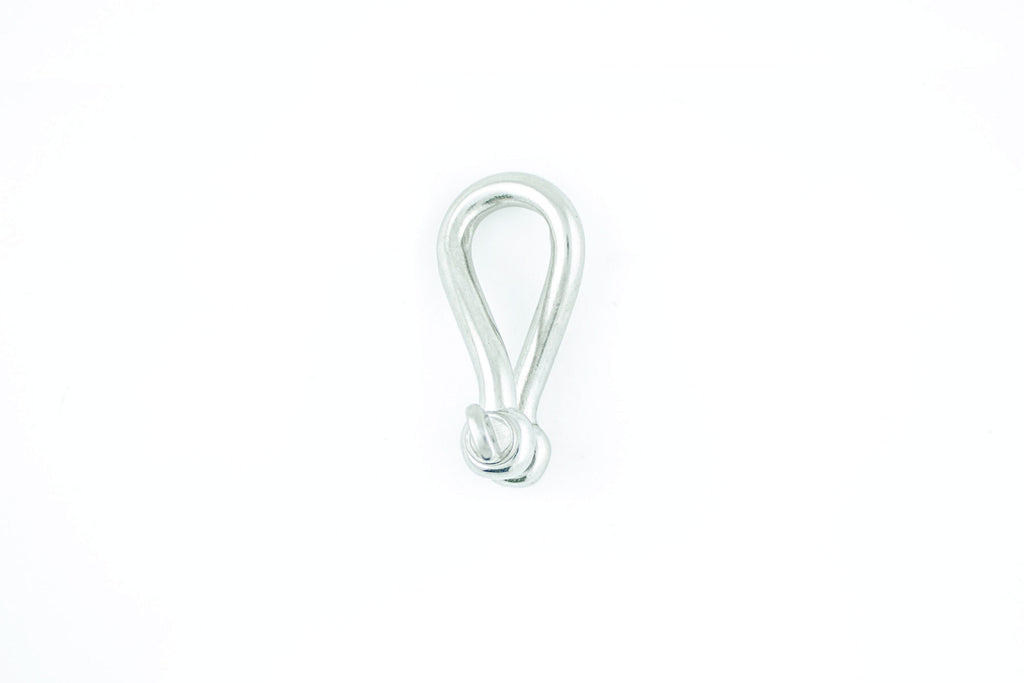

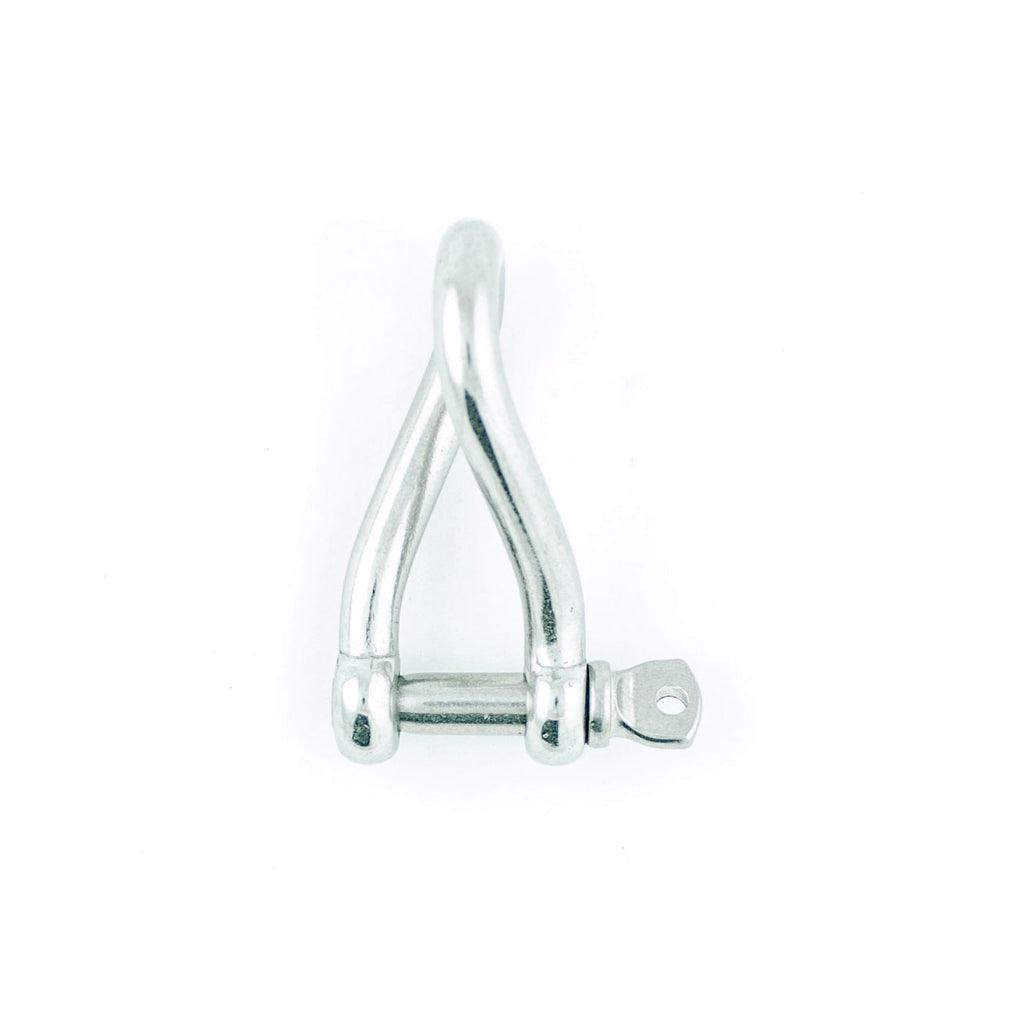

8mm Twist Shackle

The 8mm Twisty shackle is an extremely lightweight, very strong connection point that is great for various parts within your pulley system. Use them to connect the brake to the attachment point for your pulley system in order to rotate the brake for easier tension release.

Tech Specs

Dimensions

8mm Twist Shackle Dimensions

a - Stock Diameter – 8.0 mm (0.31 inches)

b - Pin Diameter – 8.0 mm (0.31 inches)

c - Eye Diameter – 16.0 mm (0.63 inches)

d - Eye Width – 8.0 mm (0.31 inches)

e - Jaw Width – 16.0 mm (0.63 inches)

f - Inside Length – 57.0 mm (2.25 inches)

g - Inside Width – 16.0 mm (0.63 inches)

h - Outside Length – 77.0 mm (3.03 inches)

i - Bolt Length – 45.0 mm (1.77 inches)

j - Outside Width – 32.0 mm (1.25 inches)

Weight – 80 g (2.8 oz)

Strength

MBS – 29.4 kN (6,600 lbf)

WLL – 5.9 kN (1,320 lbf)

Material

Raw Material – 316 Stainless Steel

Manufacture Method – Drop Forged
