8mm Dee Shackle

$6.90

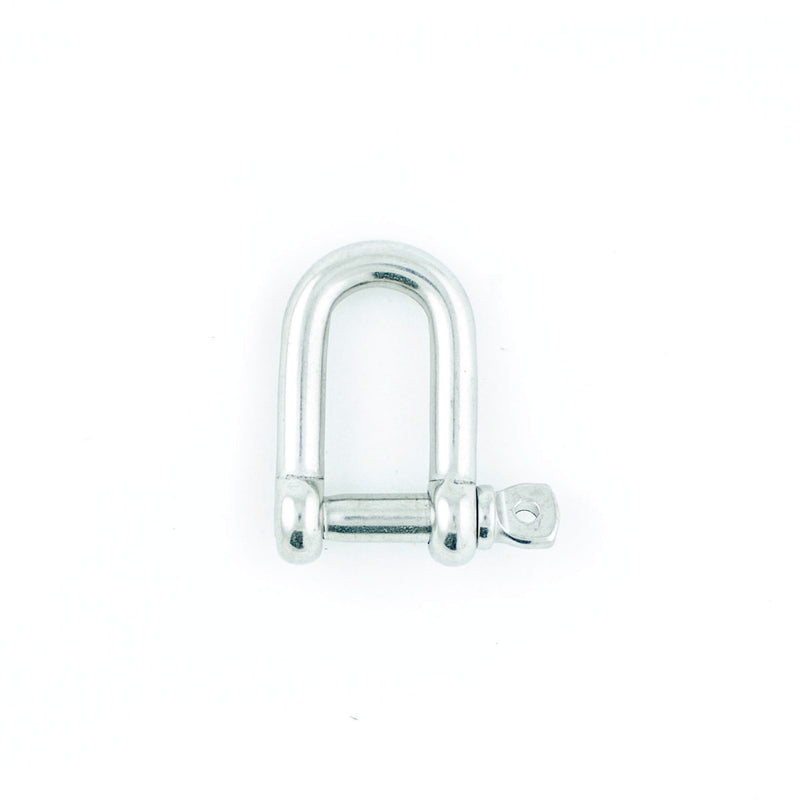

8mm Dee Shackle

The 8mm Dee Shackle is an extremely lightweight, very strong connection point that is great for various parts within your pulley system. Use them to connect the rope to the becket of your pulley, or to attach your brake to your rigging plate. The various uses for this shackle are endless.

A good use for these shackles is in an embedded base 9:1 pulley system to connect the inner pulleys to the beckets of the outer pulleys. Another great use is for connecting the rope to the becket in your pulley system.

A compact shackle with tons of uses in your slackline rig!

Tech Specs

Dimensions

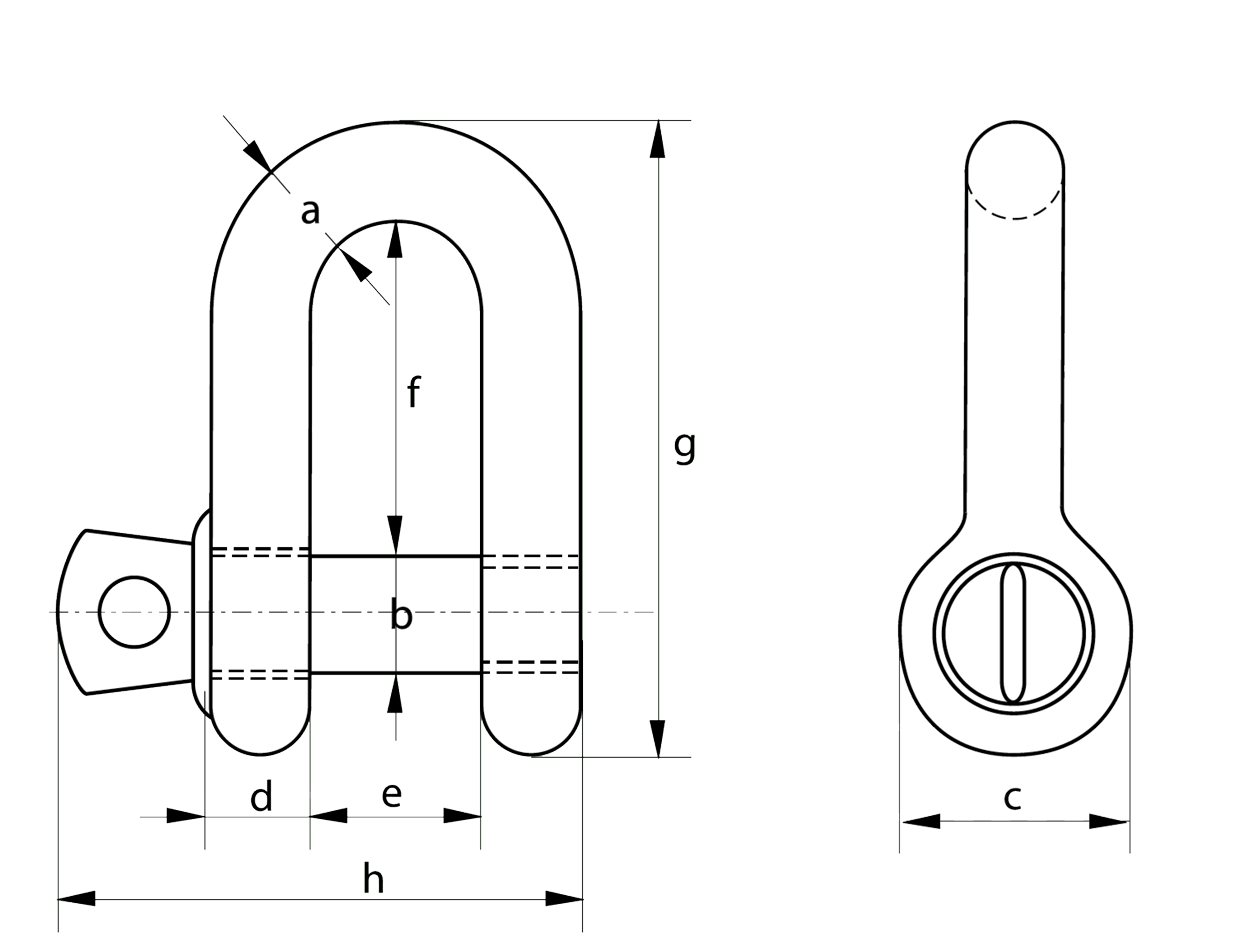

8mm Dee Shackle Dimensions

a - Stock Diameter – 8.0 mm (0.31 inches)

b - Pin Diameter – 8.0 mm (0.31 inches)

c - Eye Diameter – 16.0 mm (0.62 inches)

d - Eye Width – 8.0 mm (0.31 inches)

e - Jaw Width – 17.0 mm (0.69 inches)

f - Inside Length – 32.0 mm (1.25 inches)

g - Inside Width – 17.0 mm (0.69 inches)

h - Outside Length – 52.0 mm (2.05 inches)

i - Bolt Length – 43.0 mm (1.69 inches)

j - Outside Width – 33.0 mm (1.30 inches)

Weight – 50 g (1.8 oz)

Strength

MBS – 29.4 kN (6,600 lbf)

WLL – 5.9 kN (1,320 lbf)

Material

Raw Material – 316 Stainless Steel

Manufacture Method – Drop Forged
