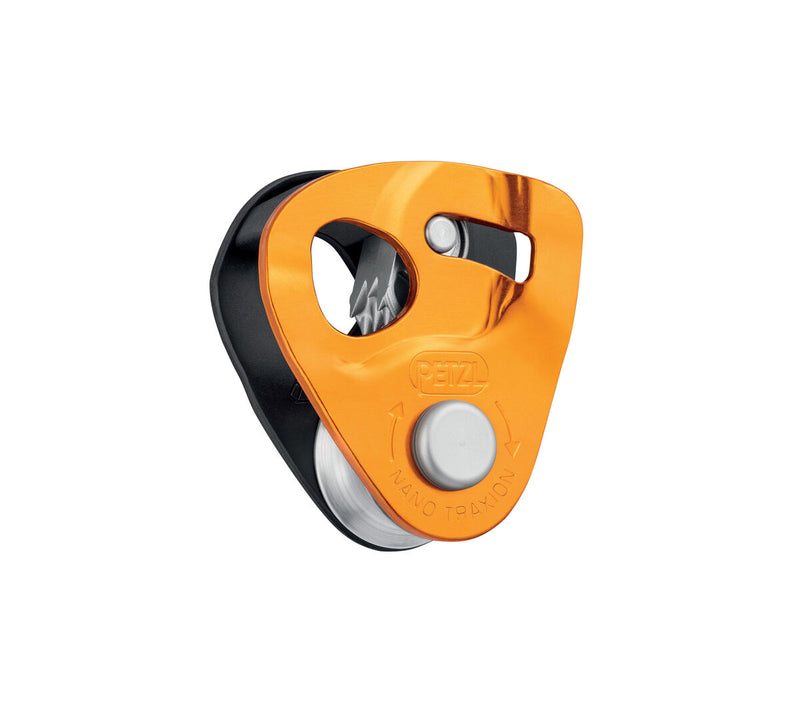

Petzl Nano Traxion Pulley
High efficiency, ultra-light progress capture pulley. A great brake for a pulley system or a progress capture for taglines.
NANO TRAXION is an ultra-lightweight (53 g) and compact progress-capture pulley designed for rescue. Sealed ball bearings provide excellent efficiency (91 %).
Ultra-light and compact:
- only 53 g
- very compact
- hole allows a Sm'D carabiner to be connected to the pulley with a cord, making the device loss-proof
Designed for rescue
High efficiency:
- sealed ball bearings provide excellent efficiency (91 %)
- locks even on frozen or muddy ropes
- for use on 7 to 11 mm diameter ropes
- rope installation diagrams engraved inside pulley
Tech Specs
Dimensions
a - Outer Length – 53.0 mm (2.09 in.)
b - Outer Width – 48.1 mm (1.89 in.)
c - Thickness – 20.4 mm (0.80 in.)
d - Anchor Hole Length – 15.7 mm (0.62 in.)
e - Anchor Hole Width – 15.2 mm (0.60 in.)
f - Anchor Hole Thickness – 13.3 mm (0.52 in.)
Acceptable Rope Sizes – 7.0 - 11.0 mm (0.28 - 0.43 in.)
Weight – 53 g (1.9 oz.)
Strength
MBS – 15.0 kN (3,375 lbf)
WLL – 3.0 kN (675 lbf)
