SMC CRx Pulley

$15.90

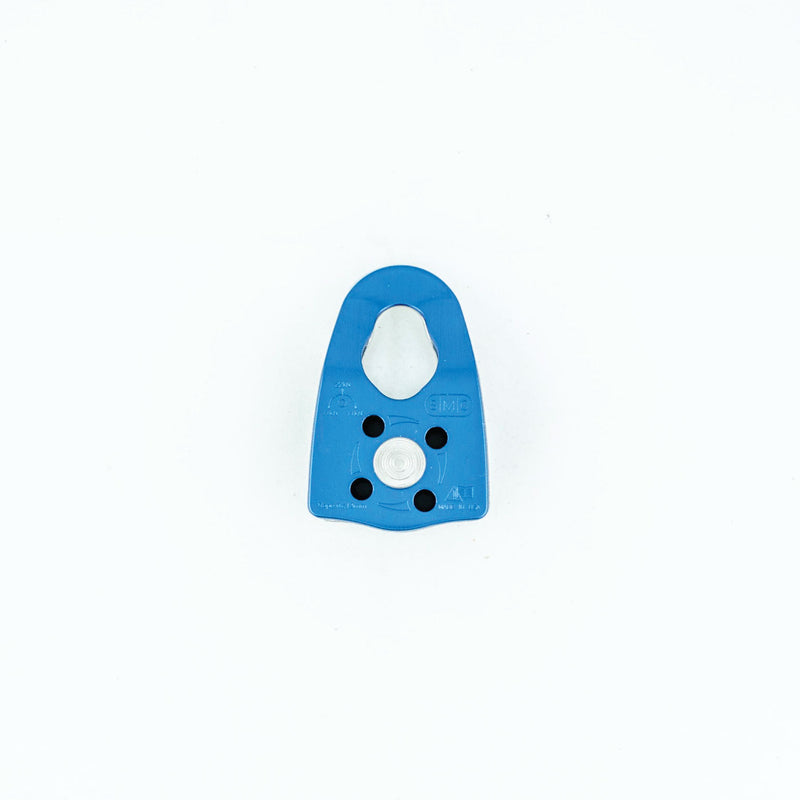

SMC CRx Pulley

The SMC Crevasse Rescue X Pulley is designed specifically for use as an alpine emergency device and no alpinist or back country skier/boarder should ever be without rope and a self-rescue pulley. Should the CRX Pulley be put into action, its diminutive size and light weight will be in contrast to its solid strength and efficiency when used in 2-to-1 systems.

The CRX Pulley tests to greater strengths than other pulleys in the same range of size and price. It has the Prusik minding capability required for use in 3-to-1 Z-systems, making it easier to haul up heavy stuff without popping a vein, or to lower heavy stuff without dropping it!

A smooth running 1.2" nylon sheave runs on a zinc-coated axle, and the color-contrasting aluminum side plates rotate for easy rope insertion and removal. Easy to carry and easy to use - a great palm-sized partner on the mountain and nearly anywhere else! Intended for use with rope up to a maximum size of 1/2".

Tech Specs

Dimensions

a - Pulley Length – 68.9 mm (2.70 inches)

b - Pulley Width – 44.5 mm (1.75 inches)

c - Pulley Height – 27.2 mm (1.07 inches)

d - Sheave Diameter – 31.8 mm (1.20 inches)

e - Tread Diameter – 19.0 mm (0.75 inches)

Weight – 63.8 g (2.25 oz.)

Acceptable Rope Sizes – 5.0 - 13.0 mm (0.20 - 0.51 inches)

Strength

MBS – 27.0 kN (6,070 lbf)

WLL – 5.4 kN (1,214 lbf)

Material

Body Material – Anodized Aluminum Alloy

Sheave Material – Delrin

Axle Type – Bushings
