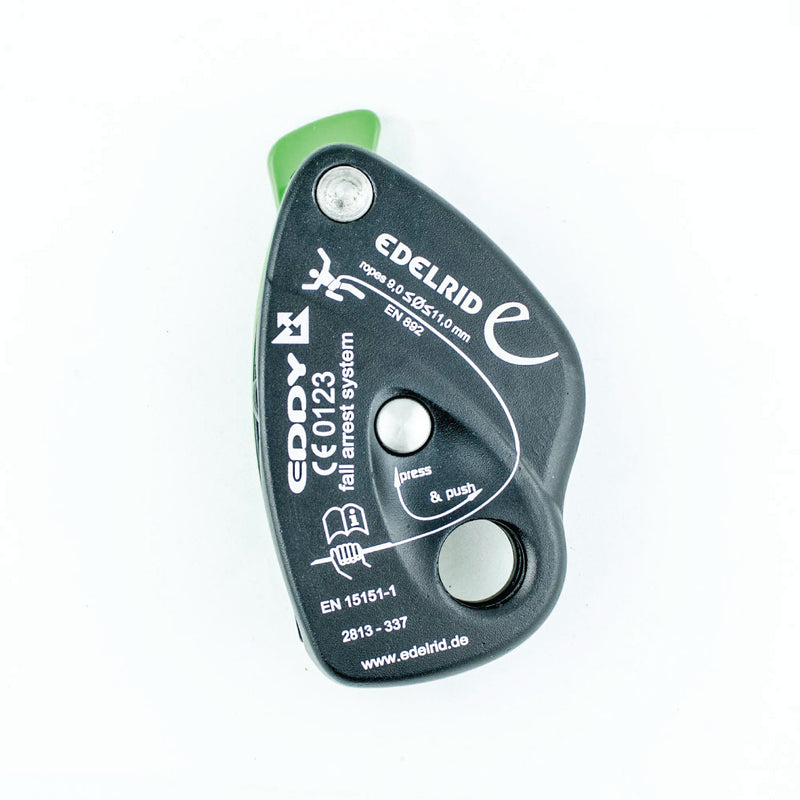

Edelrid Eddy

$139.00

Edelrid Eddy

The Edelrid Eddy is a fantastic brake for your pulley system. The low profile design works very well with the embedded brake technique using the SMC 3" Double PMP's.

Even under high loads, the Edelrid Eddy is very easy to release. There is a panic feature that if you pull too hard on the handle, the cam will automatically close. This allows you to have serious control over the rate at which tension is released.

The Eddy will accept ropes between 9 and 11 mm in diameter, which gives you the option to have a beefy or lightweight pulley system. A great brake for lines up to 400 feet long.

NOTE: The Eddy has a very wide attachment point. It will only work with carabiners or shackles which have a jaw width of more than 3/4". The 7/16" Twist Shackle is a perfect fit.

Tech Specs

Dimensions

Edelrid Eddy Dimensions

a - Outer Length – 114.0 mm (4.50 inches)

b - Outer Width – 76.0 mm (3.00 inches)

c - Thickness – 36.0 mm (1.42 inches)

d - Anchor Hole Length – 18.0 mm (0.71 inches)

e - Anchor Hole Width – 18.0 mm (0.71 inches)

f - Anchor Hole Thickness – 21.5mm ( 0.85 inches)

Acceptable Rope Sizes – 9.0 - 11.0 mm (0.35 - 0.43 inches)

Strength

MBS – 14.0 kN (3,147 lbf)

WLL – 2.8 kN (629 lbf)
