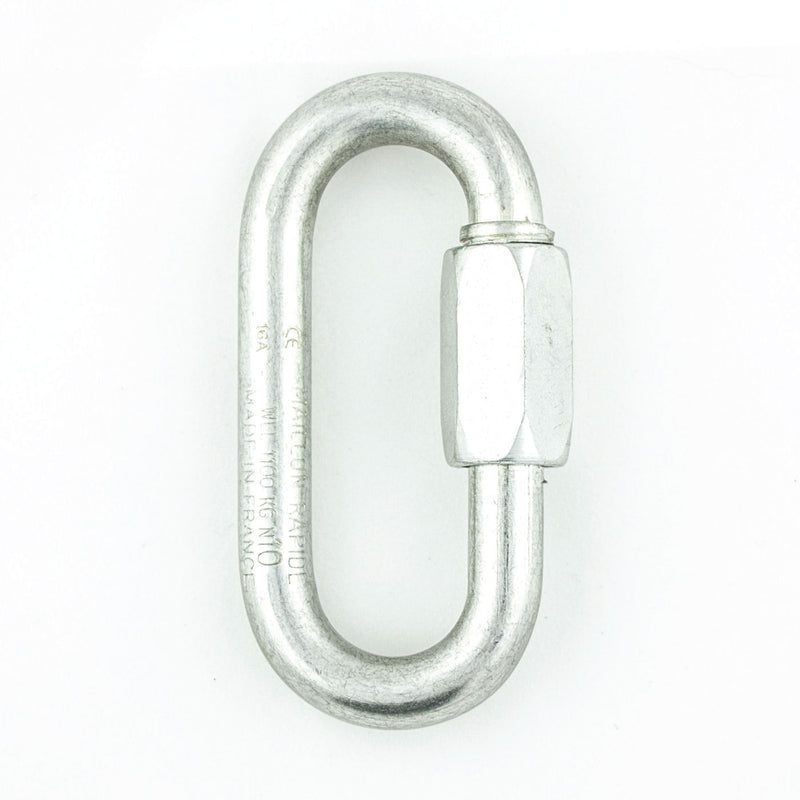

10mm Oval Quicklink


10mm Oval Quicklink

Steel Quicklinks are an excellent alternative to carabiners. They offer the same strength benefits of a steel carabiner for a fraction of the cost. Excellent for various connections within your pulley system or highline anchors.

The 10mm Zinc-Plated Delta Maillon Rapide is made from alloy steel which has been plated with Zinc for corrosion resistance. The gate turns very smooth and never locks up even after being under tension for hours on end. This piece of gear is fantastic for attaching your pulleys to the spanset as well as in combination with a rigging plate.

Tech Specs


10mm Oval Quicklink Dimensions

a - Stock Diameter – 10.0 mm (0.38 inches)

b - Outer Width – 40.5 mm (1.59 inches)

c - Inner Width – 20.5 mm (0.81 inches)

d - Outer Length – 89.0 mm (3.50 inches)

e - Inner Length – 69.0 mm (2.72 inches)

f - Opening Size – 12.0 mm (0.47 inches)

g - Gate Length – 29.0 mm (1.14 inches)

h - Thread Diameter – 13.0 mm (0.51 inches)

Weight – 137 g (4.8 oz)


MBS – 53.9 kN (12,125 lbf)

WLL – 10.8 kN (2,425 lbf)


Material – Zinc-Plated Galvanized Steel
